Product display

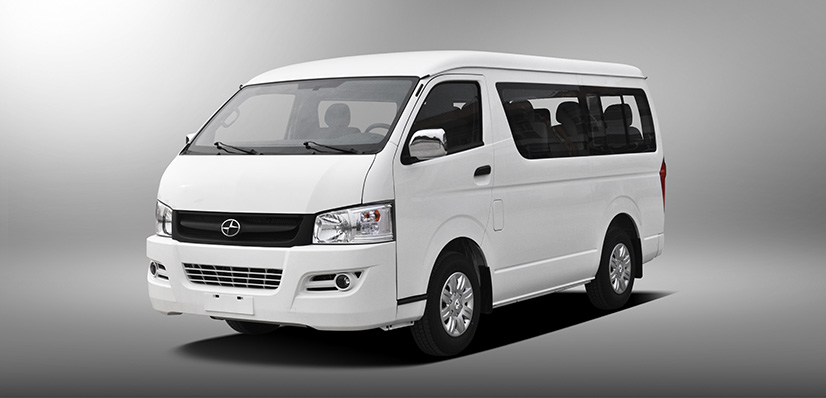

A4

Model introduction

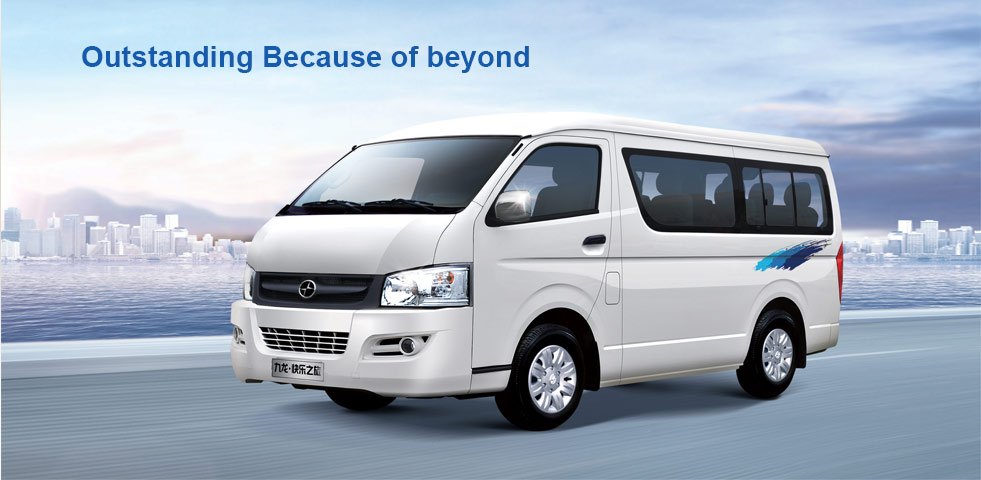

Outstanding Because of beyond
The representative work of value pack light car, with large space design, takes more comfortable. The rear seat folding design, pluripotent and practical, can both carry people and goods. As a Chinese saying goes, blue from indigo is deeper than its origin. It enters into the top rank of Asian series. Joylong A4 with pure quality, heartbeat price, perfects to build “a new generation” Hiace products, wishing you have a pleasant road of life and progress.

Model highlights

Canonical business travel Super value love

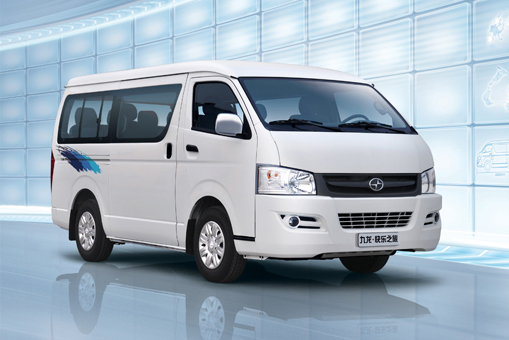

A new generation Hiace type, fine appearance, heroic simplicity, creates business style.
Luxurious interior Cheerful enjoyment
Dark interior, mature and stable, low-key body does not lose magnificence. Ergonomic design makes driving more comfortable.

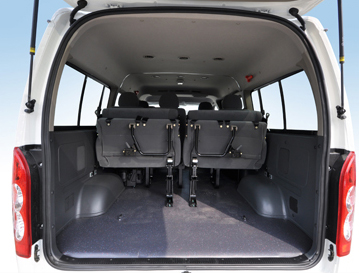

Flexible space Easy travel
Four people folding forward seat, provides abundant luggage area, making both business and travel feasible. The wide-body model, 2 seats changing to 3 seats, one list more than similar models, make passenger operations more efficient.
Mature power Struggle for win
XCE 4RB2/JM491Q-ME/SC25R equipped with super and strong power, quiet operation, high speed performance, while matching the five gear manual variable speed system, enjoy the leading feeling.
XCE 4RB2
JM491Q-ME
SC25R
Five speed manual
transmission

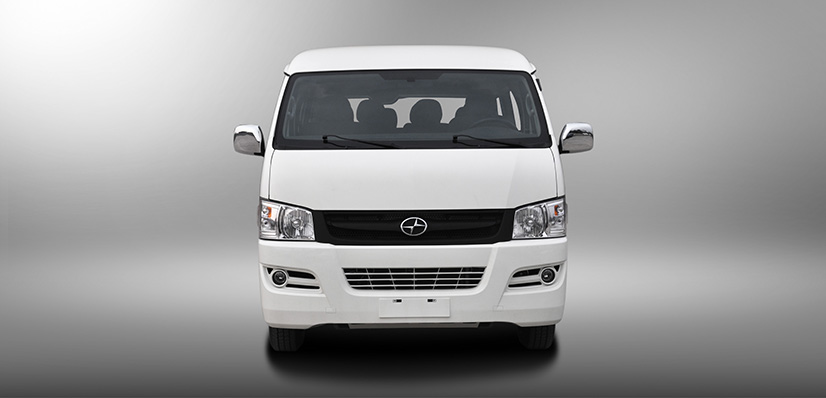

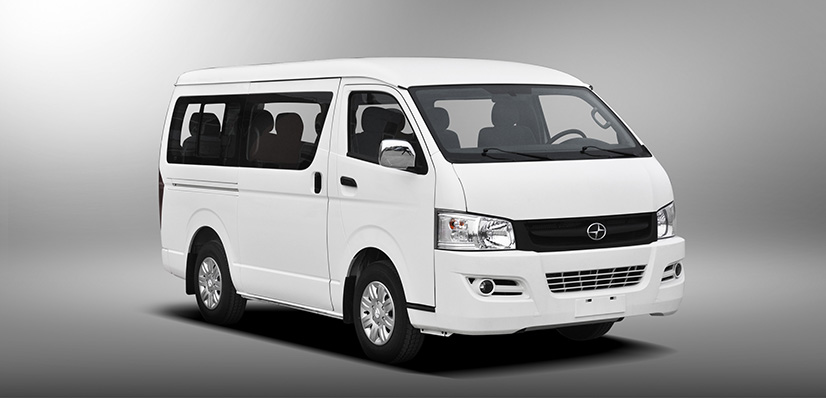

Exterior

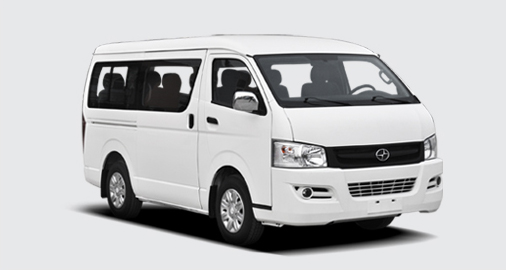

Standard
Built-in sliding window

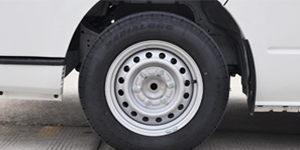

Wheel rim

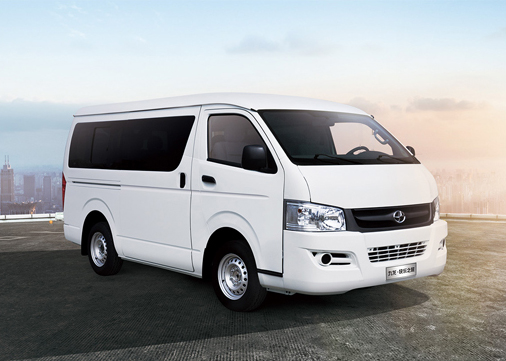

Economic

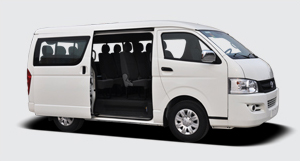

Large sliding door
Wheel rim

Three selective colors

Interior

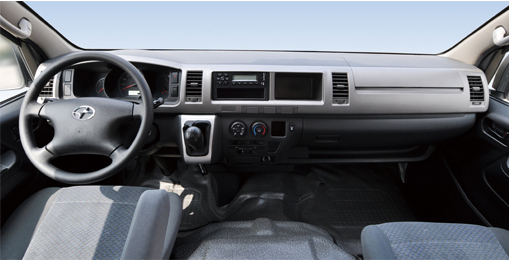

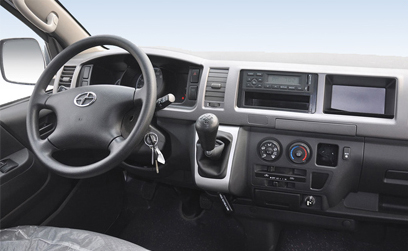

Drive zone

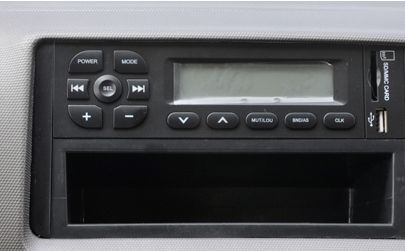

Radio (with MP3 interface)

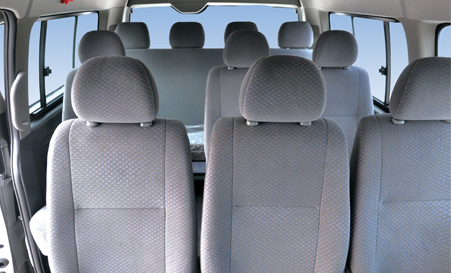

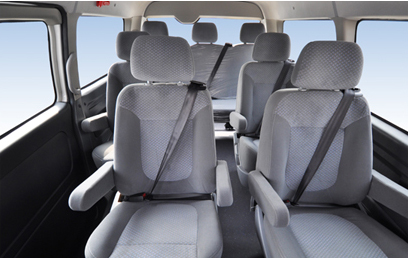

Nine administrative seat layout (standard)

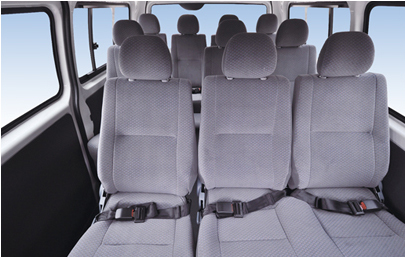

12 standard seat layout (Economic)s
Independent air conditional
system
Toplight
Safety hammer
Floor leather

Seating layout

Vehicle configuration

ModelStandardEconomicEconomic
HKL6480CAHKL6480CHKL6480CA
Basic parameter
Length*width*height (mm)4840×1880×2080/22854840×1880×2080/22854840×1880×2080/2285
Wheelbase (mm)257025702570
Seating capacity12 seats12 seats10-15   seats
Fuel tank capacity (L)707070
Max. speed(km/h)≥140≥140≥140
Engine modelSC25RDK4B1DK4B1
Emission standardEURO-IVEURO-ⅢEURO-Ⅲ
Displacement(L)2.52.4982.498
Rated power(kW/rpm)100/380085/380085/3800
Max. torque(N.M/rpm)330/1800-2400260/1800-2600260/1800-2600
Fuel typeDieselDieselDiesel
GearboxFive speed manualFive speed manualFive speed manual
Tire195R15C Radial tire195R15C Radial tire195R15C Radial tire
Brake systemFront disc rear drum,  ABS+EBD, Intelligent brake booster system
SuspensionFront double wishbone independent suspension, rear variable stiffness leaf spring
Exhaust after-treatmentEGR+DOC+POCEGREGR
Main configuration
Exterior mirrorElectricManualManual
Anti glare rearview mirror
Front door windowElectricElectricElectric
Central control door lockElectricManualManual
Sliding doorManualManualManual
Wiper washIntermittent front wiper, rear wiperIntermittent front wiperIntermittent front wiper
Glass scrubberFront & rear glass scrubberFront glass scrubberFront glass scrubber
 Rear electric defroster
Sun shieldBilateral sun shield(with make-up mirror)Main driving sun shieldMain driving sun shield
Up and down adjustable steering wheel
High mount brake lamp
Built-in sliding window
Anti UV front windshield
White side window glass
Integral combination lamp
Spray front grille
Wheel rimOrdinary steel rim, steel rim decorative coverOrdinary silver rimOrdinary silver rim
Body color strip
Sliding lord, co-pilot seat
Standard seat
Administrative seatOptional
Rear folding forward seat
InteriorDark gray integrated luxurious interiorDark gray simple interiorDark gray simple interior
PVC floor leather
Integral step in door
Side trim panelIntegrate luxurious side trim panelSimple side trim panelSimple side trim panel
CeilingLuxurious knitting ceilingSimple ceilingSimple ceiling

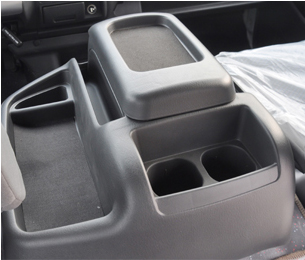

Central storage box
Front seat heater ( including defroster)
Rear seat heater
Front and rear split type air conditional
Spray type air conditional outlet
Radio(with USB interface)
SpeakerTwoTwoTwo
Ordinary toplightTwoOneOne
VINLJSKA2BF*********LJSKA2BF*********LJSKA2BF*********
