Product display

Tobacco Van

Model introduction

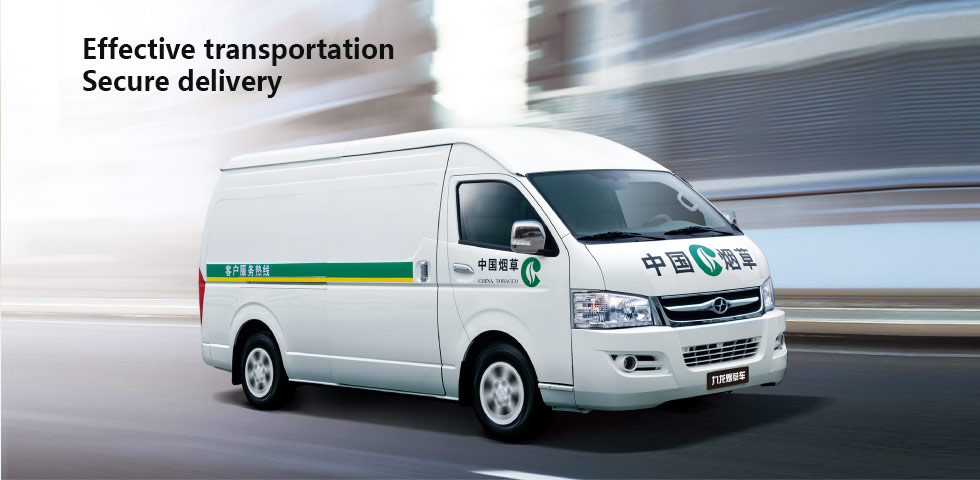

Effective transportation, Secure delivery
Large space makes effective transportation. Lightweight body design reduces energy consumption. The diverse configuration of cargo compartment can be customized.

Model highlights

Large space, Effective transportation

Large space design which is 9.248 cubic meters can hold 5000 strips of cigarettes.

Complete special equipment

Special equipments of interior parts include special antiskid floor mat, special safety box, multifunctional lockers and portable stroller, which helps you transport without worry.

Five-proof in one, Secure guard

Body uses special materials of noise insulation and good sealing performance. It also has the function of moisture proof, anticorrosion, rainproof, dustproof and fungi-proof. Five-proof in one works as secure guard.

Strong power

It is equipped with the engine of XCE 4RB2/ MITSUBISHI 4G69, matched five speed manual transmission system, and engine power is stronger.

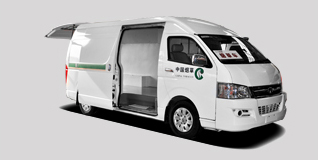

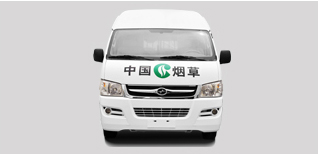

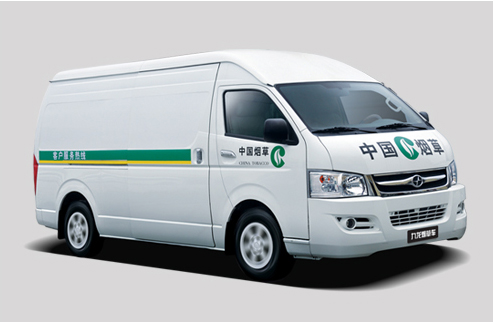

Exterior

Interior

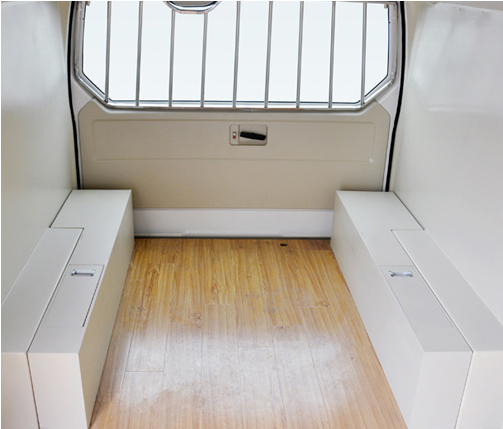

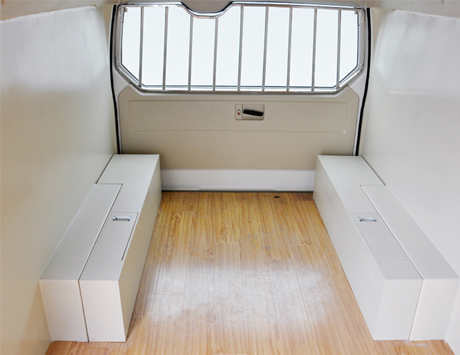

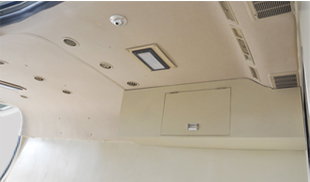

Special interior (Composite material disposable mold forming)

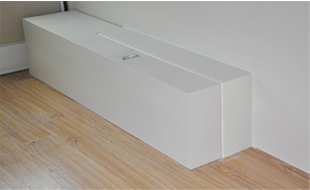

Multifunctional locker
Special non-slip floor(Choose rubber PVC carpet and quartz sand floor)
Hanging wall case
Password safe
Roof light
Customize partition(with organic glass closed)

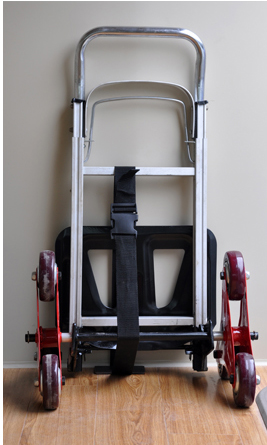

Portable logistics transport vehicle

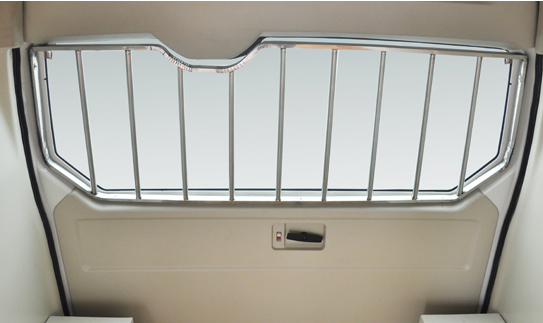

Tail door stainless steel guardrail

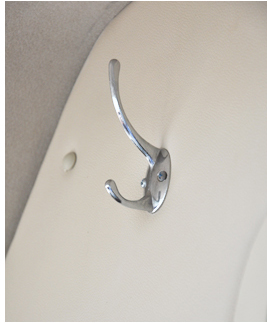

Hanger

Optional device

Camera monitoring system to ensure goods safety

Color reverse display and DVD video system

Front anti-collision sensor

Four seats of passenger area

Image transmission device( Single card, double cards), meet the image transmission in time, easily to dispatch center operation.

Voice transmission device (double cards), meet the voice transmission in time, easily to dispatch center operation.

Camera monitoring system
Monitoring video recording storage recorder
Baton

Plane layout

Model Equipment

ModelHKL5030XXYE4
Basic Parameter
Overall length*width*height(mm)5380×1880×2285
Wheelbase(mm)3110
Seating capacity2,6
Fuel tank capacity(L)70
Max. speed(km/h)140
Engine model4RB24G69S4N
Emission standardEURO-IVEURO-IV
Displacement(L)2.4382.378
Rated power(kw/rpm)102/4600-5000100/5250
Max. torque (N.m/rpm)217/2600-3200200/2500-4000
Fuel typeGasoline
Transmission typeFive speed manual transmission
Tire195R15C Radial tire
Brake systemFront disc rear drum, ABS+EBD, Intelligent brake booster system
SuspensionFront double wishbone independent suspension, rear variable stiffness leaf spring
Specialized Equipment
Standard configurationIntermittent front wiper, rear wiper
Rear electric defroster
Up and down adjustable steering wheel
Reverse radar
Electric central control door lock
Electric rear mirror
High-mount brake lamp
Aluminum alloy rim
Anti UV front windshield
Dark gray privacy side window glass
Front seat heating with defroster
Front and rear independent A/C
Spray type air conditional outlet
Anion air purifier
Central storage box
CD sound system
Special configurationSpecial wall interior (Composite material disposable mold forming)
Specialized partition(with organic glass closed)
Special floor(Choose rubber carpet, Aluminum sheet and integrate glass fiber reinforced plastic floor)
Portable trolley
Special safety box and cup holder
Cargo inside size (mm): 3400×1700×1600, Max. load of 5770 strip of cigarettes (9.248CBM, 1.04 Ton)
Color reverse display and DVD video system
Front anti-collision sensor
Camera monitoring system
3G wireless image transmission system, realization of image and voice real-time transmission, easily to dispatch center operation
