Product display

Logistics vehicle

Model introduction

Brilliant future
Special design for city light logistics, considering operating requirements, carefully matching, creates value car for you. 8 cubic meters of cargo space will help you have bright prospects.

Model highlight

Enormous cargo space

The loading space which is eight cubic meters is 33% larger than similar models. Four-times transport changes to three times, which improves transport efficiency.

Spacious door design, loading/unloading more convenient

Rear double doors, 1365mm ultra wide large sliding doors and classic rear lift door are available for you to choose. It is easy to achieve multiple loading and unloading at the same time, which is efficient and convenient, time-saving and labor-saving. You can load cargo without worry.

Lightweight body

Lightweight body design is more portably and flexible, and easy to adapt all the road conditions in the city. You can deliver the goods timely.

Strong power, safe and reliable

It is equipped with high-power engine, excellent performance, strong power, at the same time, matching the five speed manual transmission system, and free to control; Monocoque body design with intelligent brake assist system and ABS+EBD safety system improves the safety performance of the vehicle.

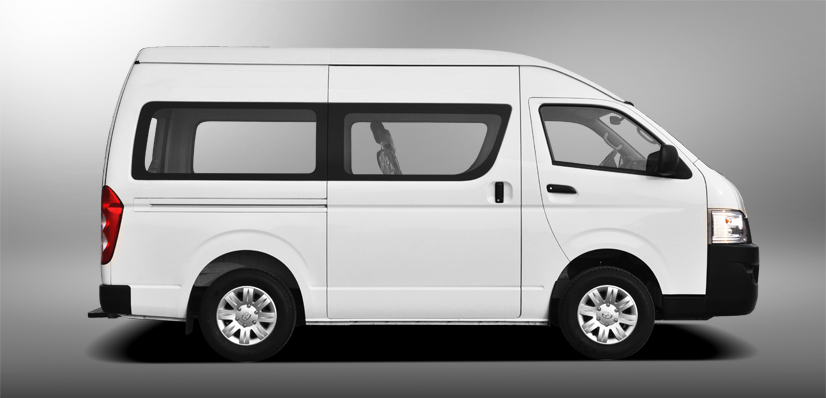

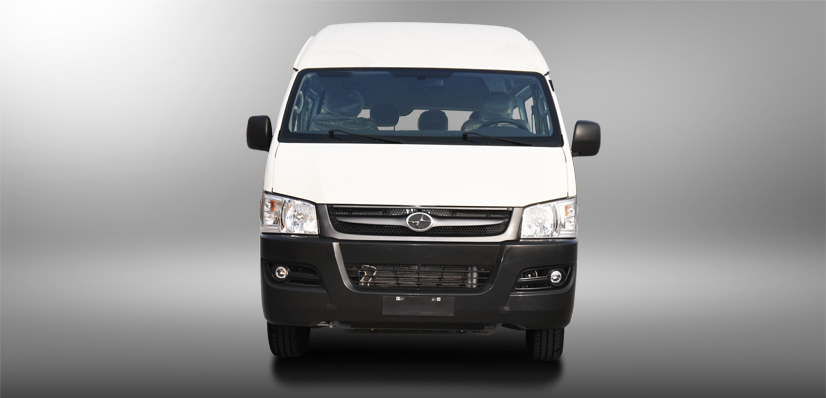

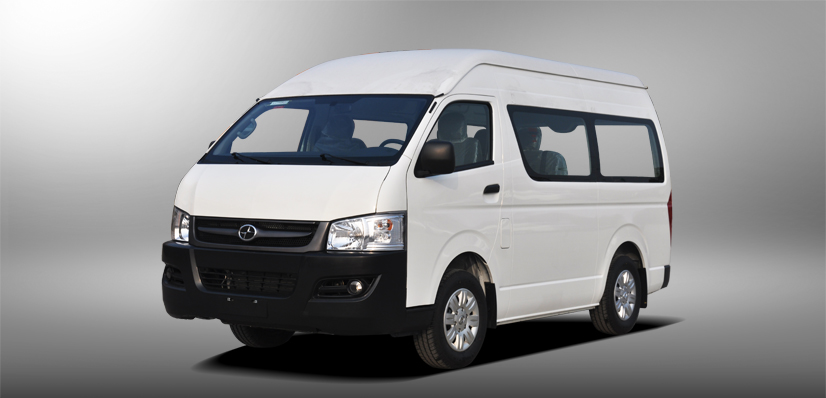

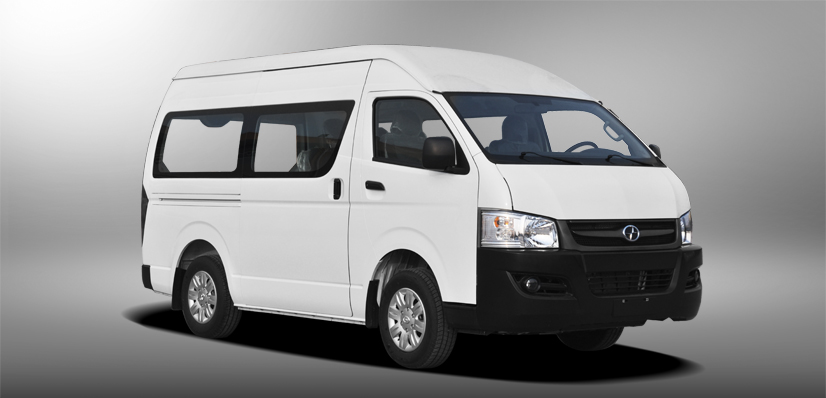

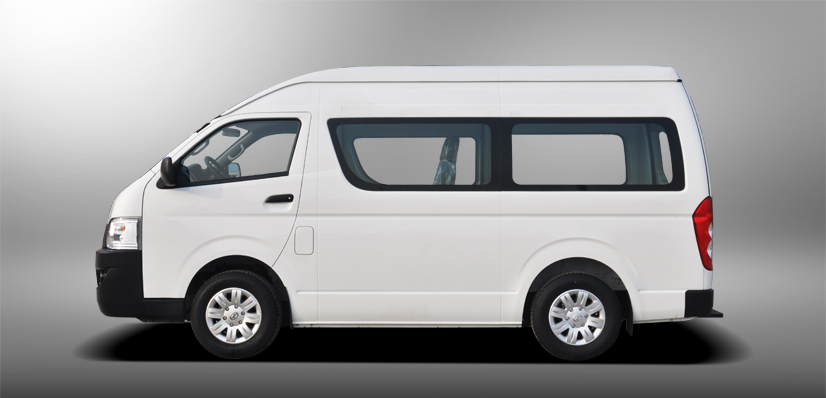

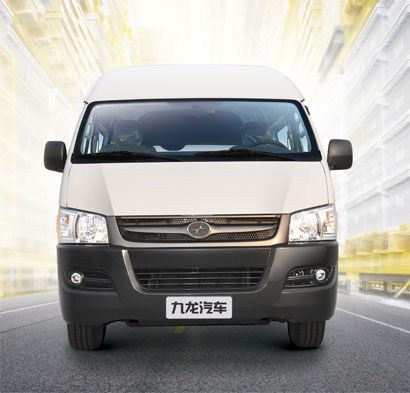

Exterior

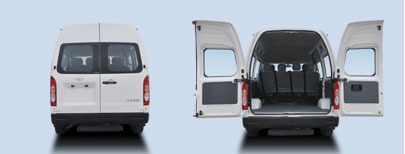

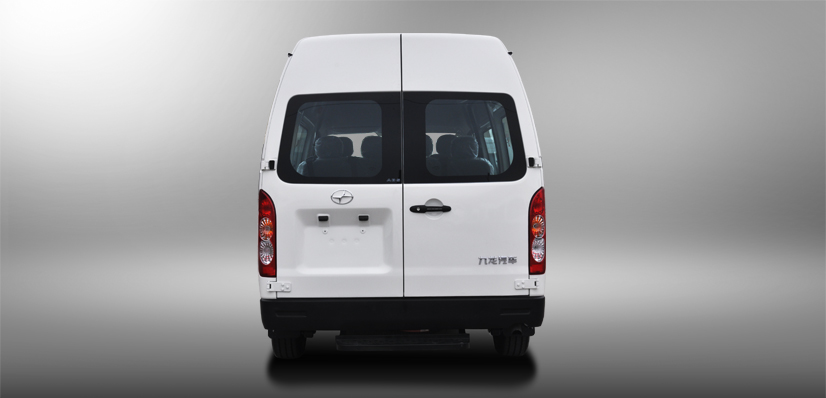

Rear double doors

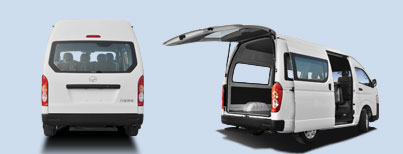

Back opening door

Interior

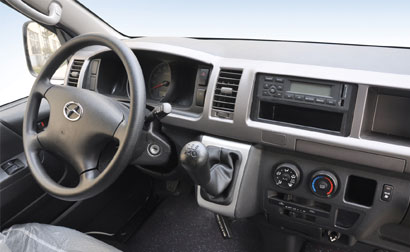

Driving zone

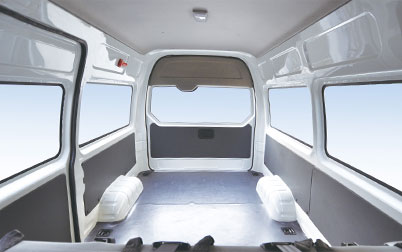

Cargo space

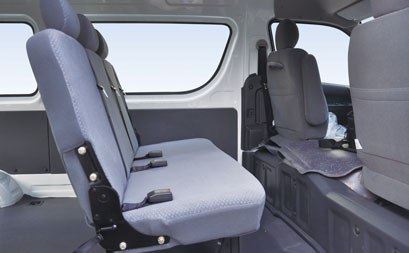

Passenger zone folding seats(open)
Passenger zone folding seats (close)

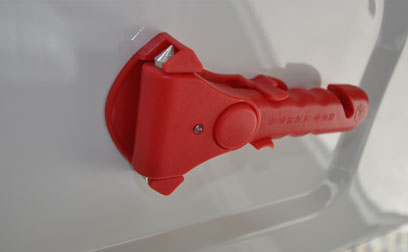

Safety hammer

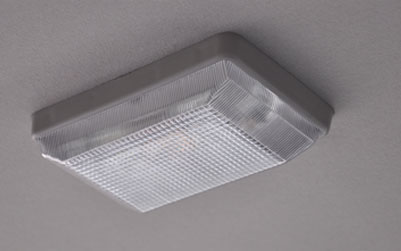

Roof light

Plane layout

Model Equipment

ModelHKL5040XSWCAHKL5031XSWE4
Basic Parameter

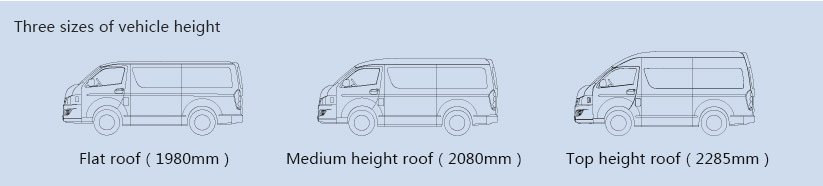

Overall length*width*height(mm)4840×1880×2285/2080/1980
Wheelbase(mm)2570
Seating capacity5-6 seats6 seats
Fuel tank capacity(L)70
Max. speed(km/h)140

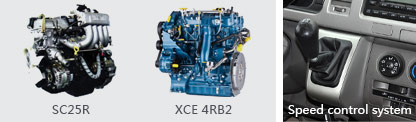

Engine modelSC25R4RB2
Emission standardEURO-IVEURO-IV
Displacement(L)2.4992.438
Rated power(kw/rpm)100/3800102/4600-5000
Max. torque (N.m/rpm)330/1800-2400217/2600-3200
Fuel typeDieselGasoline
GearboxFive speed manual transmission
Tire215/70R15C Radial tire195R15C Radial tire
Brake systemFront disc rear drum, ABS+EBD, Intelligent brake assistance system
SuspensionFront double wishbone independent suspension, Rear variable stiffness leaf spring
Exhaust after-treatmentEGR+DOC+POC(Exhaust gas recirculation + oxidation catalyst)TWC, two-stage muffler
Standard Equipment
Manual rear mirror
Electric front door window
Anti-glare inner rear view mirror
Intermittent front wiper
Front glass scrubber
Electric central control door lock
Main driving visor (with cosmetic mirror)
 Up and down adjustable steering wheel
High-mount brake lamp
Manual Sliding door
Front/Rear bumper
Left/Right pedal protective cover
Anti UV front windshield
White side window glass
Integral combination lamp
Spray front grille
Ordinary steel rim, steel rim decorative cover
Integral step in door, back door simple layering
Sliding lord, co-pilot seat
The first row triple foldable seat of passenger compartment
Front carpet (PVC)
Rear carpet (PVC+ Lining plate)
Rear-floor fixed hook, rear pedal
Simple roof, decorative side panel
Front seat heating with defroster
Front A/C
Radio(with USB interface)
Speaker Two
Ordinary toplight One
Central storage boxOptional
Built-in sliding window Optional
Fully closed dark gray privacy side window glassOptional
