Barrier Free Vehicle

Model introduction

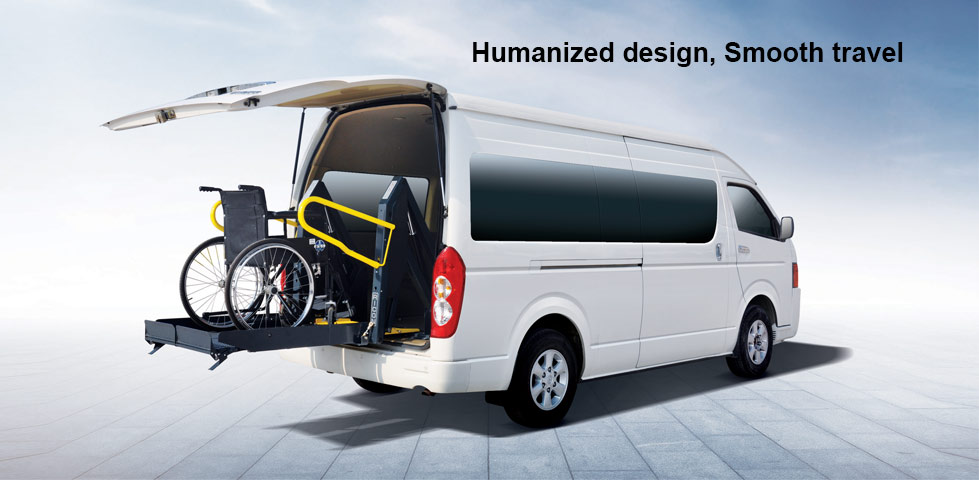

Humanized design, Smooth travel
Joylong takes technology, humanity, safety and reliability into consideration. This van is special designed for the disabled. The design not only is the perfect combination of both technology and humanism, but also reflects that our company cares for the vulnerable groups of society. The humanized design help disabled people travel easily.

Model highlight

Automation, Humanization

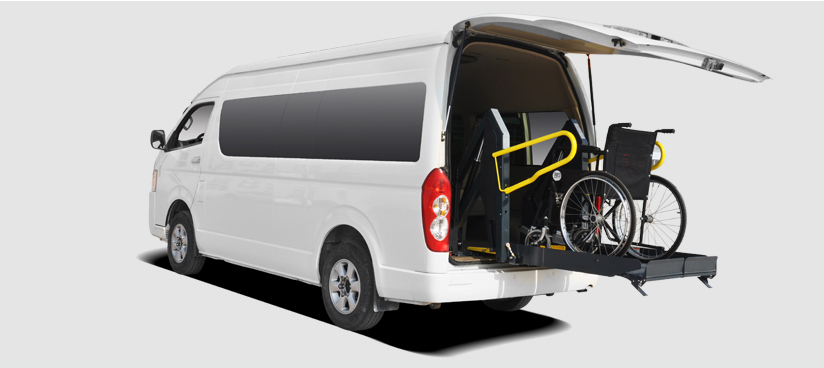

The van is equipped with professional wheelchair hydraulic lifting mechanism. The lifter can go out and come back automatically of the vehicle under the control of a button. The wheelchair can be raised up by the lifter and come into the vehicle when the lifter is at same height as the inner floor.

Safe, reliable and comfortable

It is equipped with rear telescopic safety belt and rear door drawstring. In order to make it more stable, the lifter is equipped with safety edge plates, wheel fixing device and 2p seatbelt.

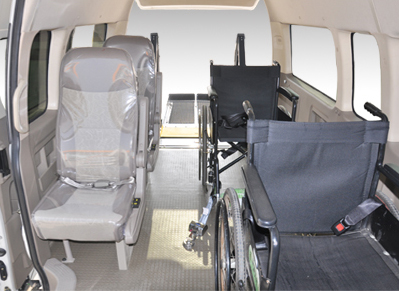

Spacious space, flexibility and changeable

The number of seats and wheelchairs in the passenger area can be provided according to the actual needs of customers. With the driver's seats it can accommodate 6-9 people at the same time. The spacious space makes it more flexible and changeable.

Strong power, stability protection

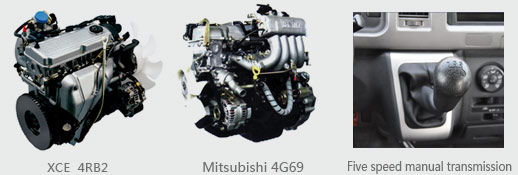

It is equipped with the engine of XCE 4RB2/Mitsubishi 4G69, matching five speed manual transmission system of strong power, providing a stable security protection.

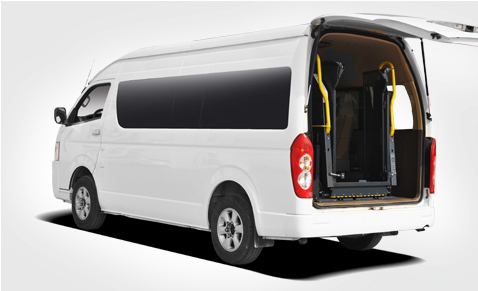

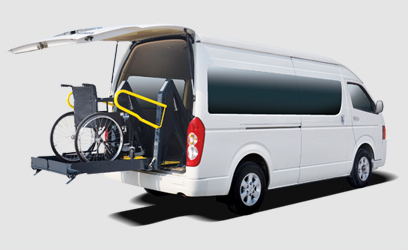

Exterior

Interior

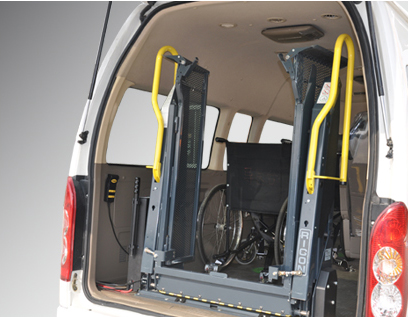

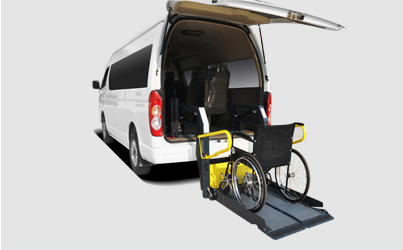

Wheelchair lift

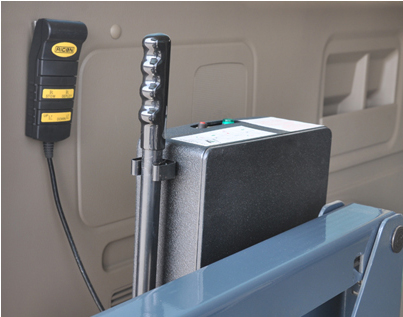

Wheelchair lift control lever

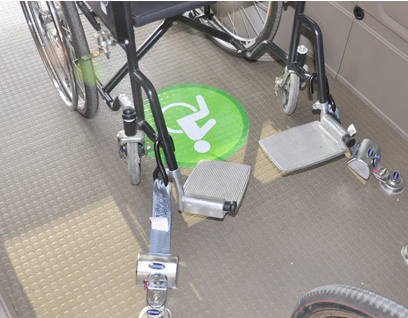

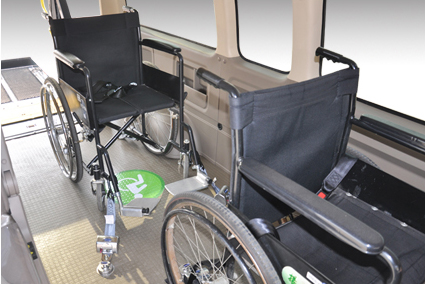

Wheelchair fixed position marking

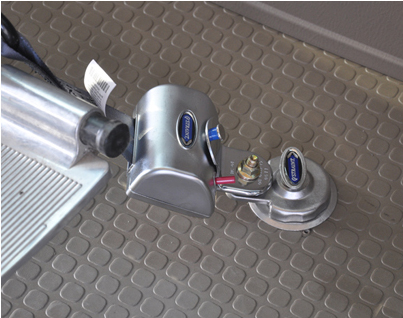

Wheelchair fixing device

Plane layout

Model equipment

ModelHKL5030XSC/HKL5031XSC
Parameter
length*width*height(mm)5380×1880×2285
Wheelbase(mm)3110
Seating capacity6月9日
Fuel tank capacity(L)70
Max. speed(km/h)140
Engine model4RB24G69S4N
Emission standardEURO-IVEURO-IV
Displacement(L)2.4382.378
Rated power(kw/rpm)102/4600-5000100/5250
Max. torque (N.m/rpm)217/2600-3200200/2500-4000
Fuel typeGasoline
GearboxFive speed manual transmission
TireRadial tire
Brake systemFront disc rear drum, ABS+EBD, Intelligent brake assistance system
SuspensionFront double wishbone independent suspension, Rear variable stiffness leaf spring
Special equipment
Standard equipmentIntermittent front wiper, Rear wiper
Rear electric defroster
Up and down adjustable steering wheel
Reverse radar
Electric central control door lock
Electric rear mirror
High-mount brake lamp
Aluminum alloy wheel
Anti UV front windshield
Dark gray privacy side window glass
Front seat heating with defroster
Front and rear independent A/C
Spray type air conditional outlet
Anion air purifier
Central storage box
CD player
Special equipment wheel chair lifter (China brand/imported)
Wheel chair fix device
