Product display

EW4

Model introduction

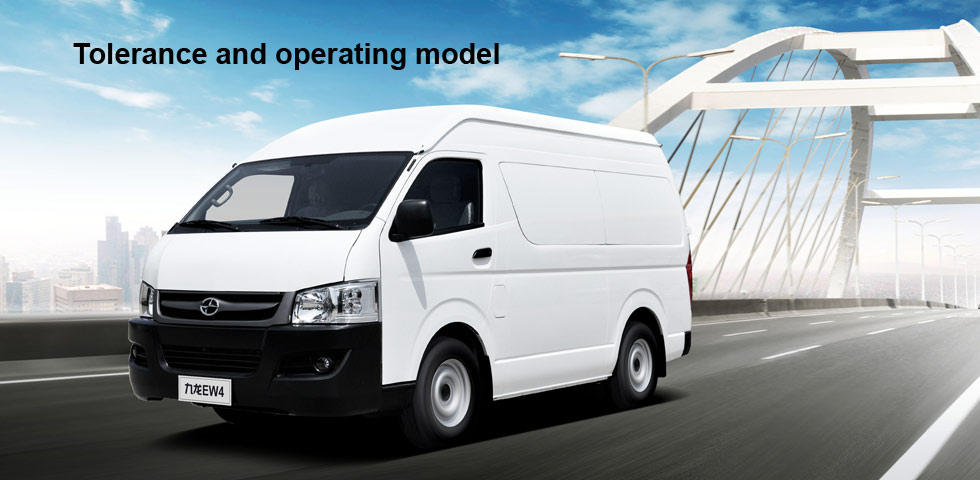

Tolerant and operating model
We take the city light logistics as the breakthrough point, to solve the last kilometer of the city light logistics for urban distribution, in consideration of the operating requirements, careful calculation of economic benefits, tolerance and social responsibility at the same time, rejecting haze, promoting zero emission, energy saving and environmental protection.

Model highlights

  • Larger space more material

    8m³large cargo space, 33% more than the market similar models, we refuse to save space by "building blocks", and we can make big gains easily.

  • Lightweight body more flexible

    As inheritance of new Asian generation of model, its logistics special performance is optimized. Three kinds of height for the vehicle can be chosen. Whatever complex road condition is in the city, it can run freely, street to street, to ensure efficient delivery of goods.

  • Green, energy-saving and more economical

    We adapt advanced EIC system equipped with the leading power, not only ensuring green environmental protection and less energy consumption, but also eliminating the engine, gearbox and other parts maintenance costs, dramatically reducing the maintenance cost, ensuring economic efficiency and environmental protection.

  • Humanized design and more intimate

    Rear double door design and classic lift doors are available for choice. Sliding door in the width of 1365mm make it easy for a number of people to load and unload goods at the same time, efficient and quick, saving time and effort, more convenient.

  • Exquisite manufacturing and more safety

    Before the vehicle electrophoresis processing, we use “Three coating three drying” coating process, salt fog test more than 1000 hours, to ensure that the body does not rot for 10 years. At the same time, according to the international standard of mature security technology, we transplant high-grade car security configuration, fully guaranteeing the vehicle safety and reliability.

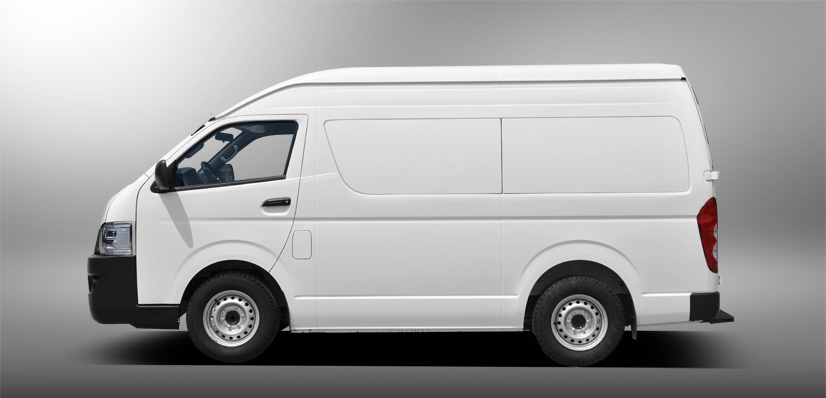

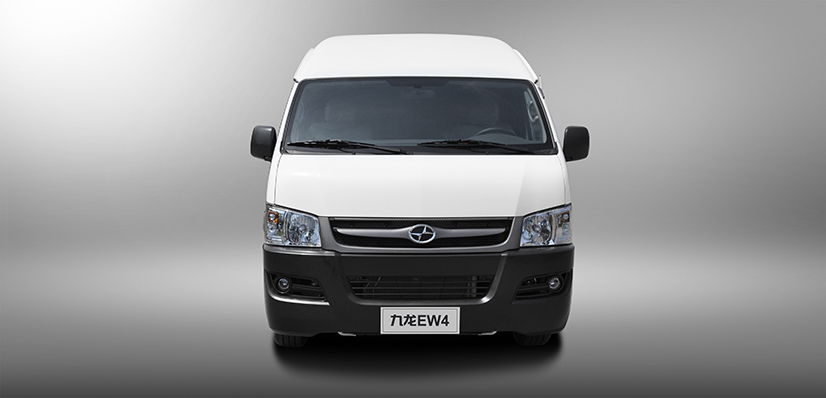

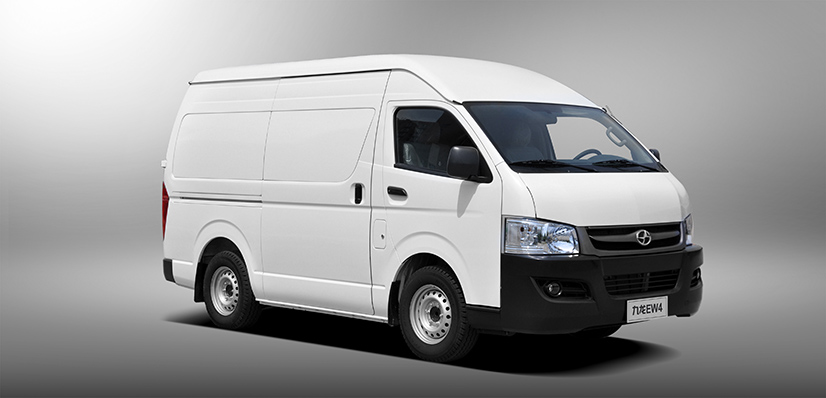

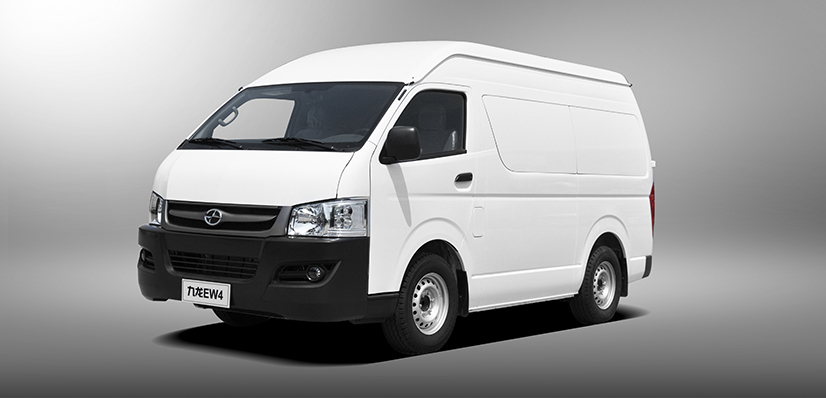

Exterior

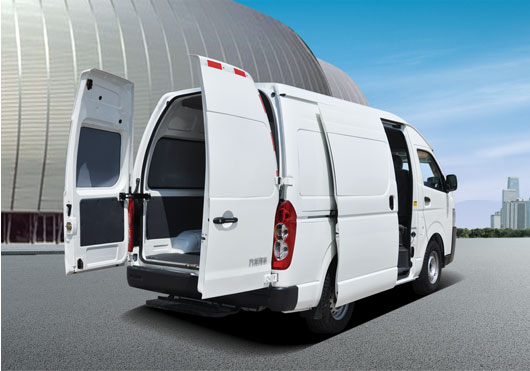

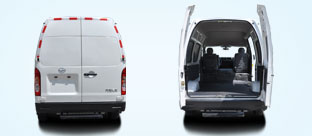

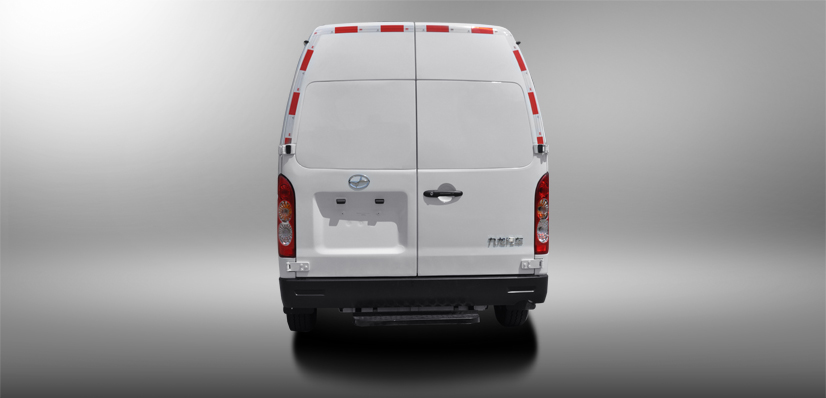

Rear double door
Warehouse closed with blind window

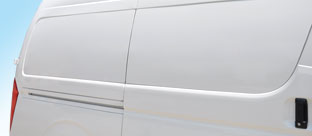

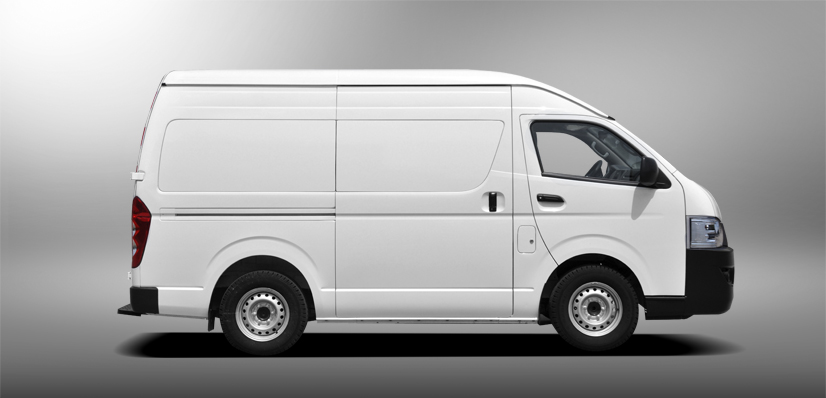

Manual sliding door

Interior

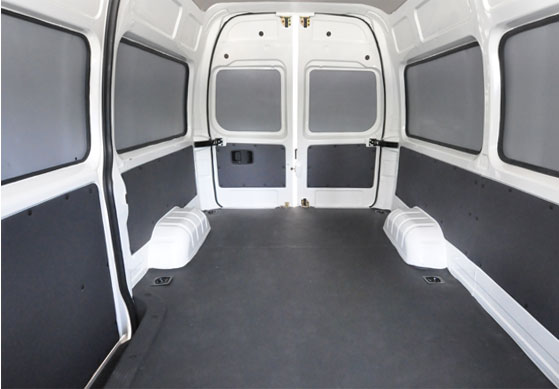

Loading zone
Driving zone
Ceiling

Layout plan

Vehicle configuration

JOYLONG E4W
ModelHKL5040XXYBEV
Basic parameter
Length*width*height(mm)4990×1880×2285/2080
Wheelbase(mm)2570
Seating capacity2-5 Seats
Curb weight2400/2430/2445
Gross mass (kg)            3550
Battery systemLithium ion power battery
Motor Rated voltage (V)384
Battery capacity(kWh)57.6
Motor rated power / peak power(kW)70/110
Motor rated torque / peak torque(Nm)400/650
Battery management systemIntelligent centralized management system
Mileage(km)220
Steering systemElectric drive hydraulic power
Tire modelRadial tire
Suspension deviceFront double wishbone independent suspension/variable stiffness spring
Braking systemFront disc and drum, active type vacuum booster, ABS+EBD
Main configuration
Function partManual rear view mirror
Electric front door window, anti glare rear view mirror
Intermittent wiper, front glass scrubber
Electric central control door lock (no remote control)
Main driving visor (with cosmetic mirror)
Up and down adjustable steering wheel
ExteriorCommon paint: White
Warehouse closed with blind window
Manual sliding door, black door handle
Anti ultraviolet front windshield
Front and rear bumper plate
Integral Combined lamps, spray type front grille
Ordinary silver ring
InteriorCombined instrument panel, integral step in door
Main&auxiliary driving economic type seat: front and rear sliding, backrest can be adjusted
Simple roof, simple decorative board
Passenger and cargo area partition
Lying ring 5,car rear pedal
Front seat heating, air conditioning
Radio (with USB interface), 2 speakers
