Refrigerated vehicle

Model introduction

Refrigeration specialist, Fast delivery

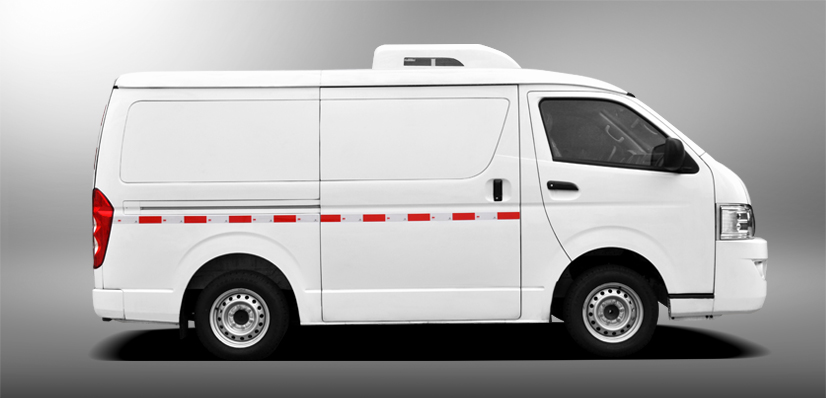

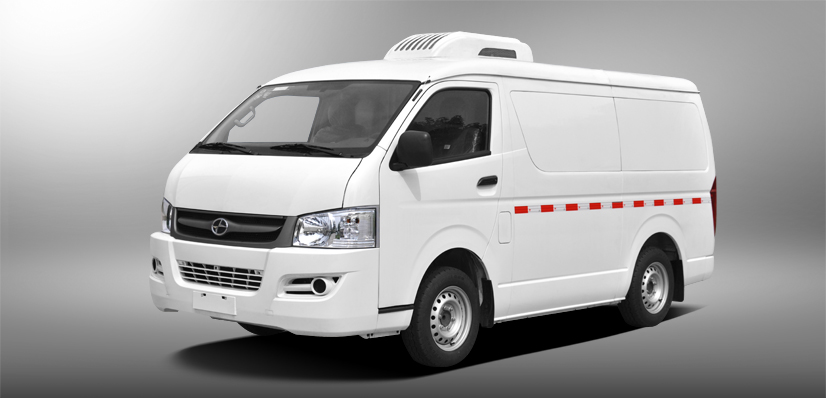

Joylong refrigerated vehicle is on the basis of Joylong A4, making full use of the original car body to build a cryogenic transportation compartment. Inside and outside of the cargo wall is made of special cold insulation material, guaranteeing the good performance of heat insulation. Double storied doors ensure good sealing performance. And the van is also equipped with professional refrigeration device to ensure the well cooling effect.

Model highlight

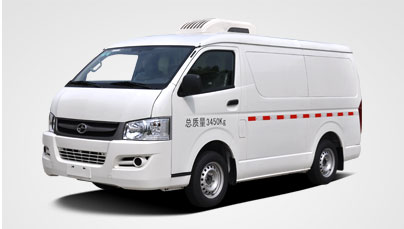

Strong power, firm and artistic carriage

Joylong refrigerated vehicle is on the basis of Joylong A4, making full use of the original car body to build a cryogenic transportation compartment. The modified part has been fully designed and tested to ensure that the carriage is firm and artistic. And the vehicle is equipped with XCE JM491Q-ME engine to ensure strong power and efficient transport.

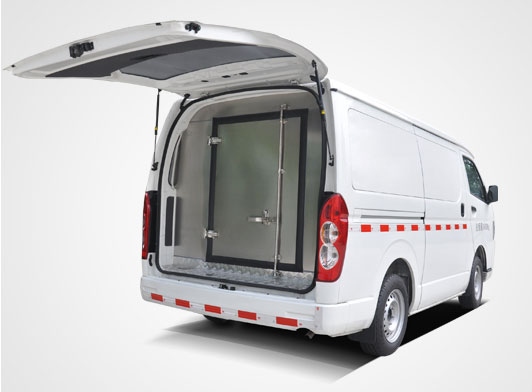

Two storied door design, good sealing performance

It adopts double storied door design, and its rear door of the model A4 is unchanged. The van is installed internal door which is opened outward and also fixed with a lock hook to ensure good sealing performance of the carriage.

Special cold insulation material, good heating insulation performance

All cracks in the carriage are sealed by foam. And we use hard polyurethane foam thermal insulation material, which fully ensures the good heat insulation performance of the compartment

Professional refrigeration device, powerful cooling

Joylong refrigerated vehicle has equipped with professional refrigeration device which uses high quality original parts of assured quality. The refrigerator adopts split type structure and top mounted installing method to ensure the strong ability of refrigerating.

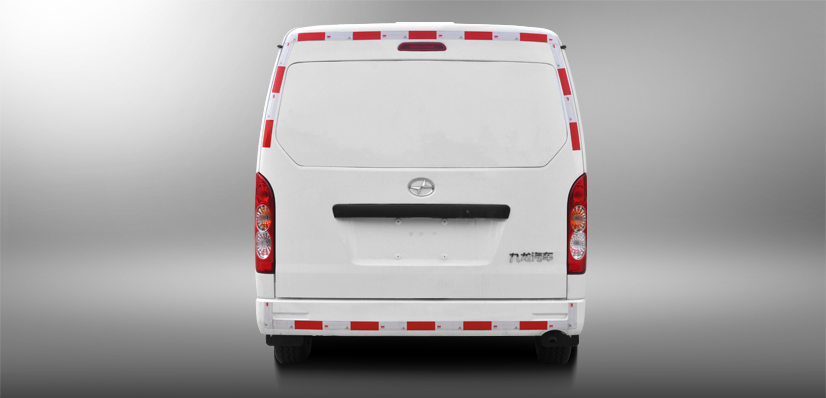

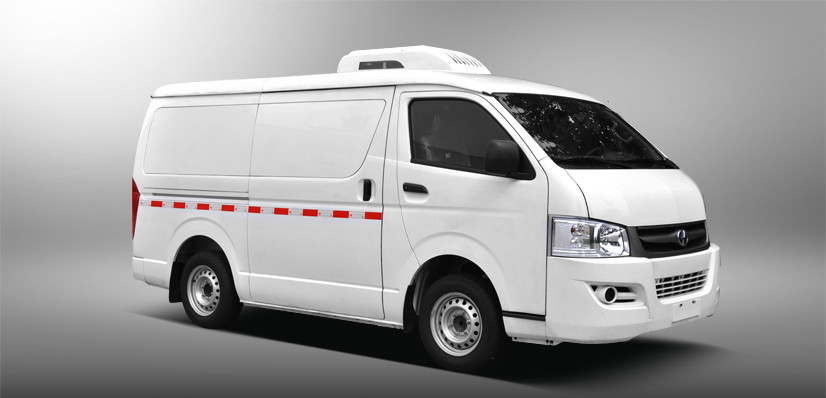

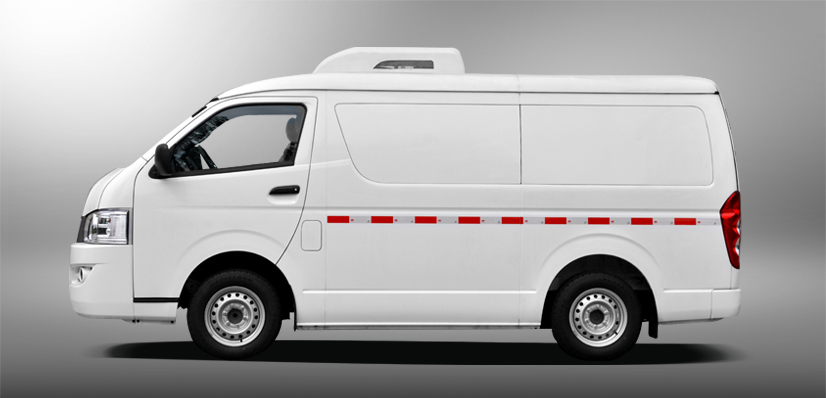

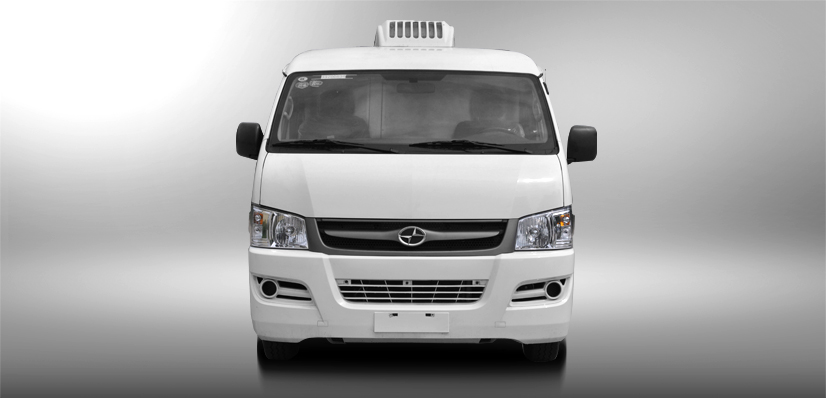

Exterior

Stainless steel heat insulation sealing door
Condenser
Fixed door lock

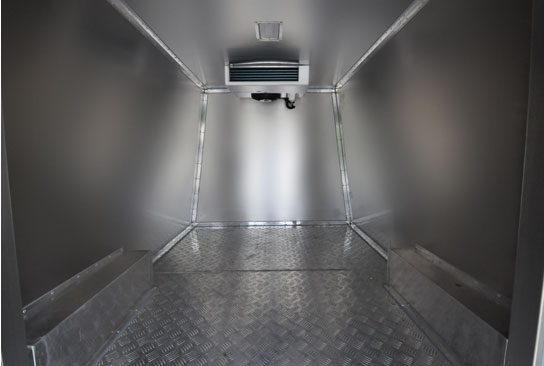

Interior

Full closed stainless steel refrigerated carriage
Evaporator
Cargo lamp
Temperature controller
Stainless steel floor drain
Pattern aluminum non-slip floor

Plane layout

Model Equipment

ModelHKL5030XLCA
Basic Parameter
Overall length*width*height(mm)4840×1880×2280
Wheelbase(mm)2570
Seating capacity2
Fuel tank capacity(L)70
Total mass3450
Curb weight2080
Total rated weight1240
Engine modelJM491Q-ME
Emission standardEURO-IV
Displacement(L)2.237
Rated power(kw/rpm)78/4600
Max. torque (N.m/rpm)193/2600-3200
Fuel typeGasoline
GearboxFive speed manual transmission
Tire195R15C Radial tire
Brake systemFront disc rear drum, Intelligent brake booster system
SuspensionFront double wishbone independent suspension, Rear variable stiffness leaf spring
Technical parameters of refrigerating unit
Usage temperature-25℃~20
Cargo space4.5m³
Refrigerating capacityAmbient temperature37.8
1.72.1kw
-17.81.15kw
EvaporatorFan formAxial flow fan
Fan quantity1
RefrigerantR404a
Structural styleSplit type
Installation wayTop mounted
Standard Equipment
Manual rear mirror
Electric front door and window
Anti-glare inner rear view mirror
Intermittent front wiper
Front glass scrubber
Driving visor
Up and down adjustable steering wheel
High-mount brake lamp
Left/Right step protective cover
Anti UV front windshield
Integral combination lamp
Spray type front grill
Steel rim, steel decorative cover
Sliding driver & co-driver seat
Front carpet (PVC)
Front seat heating with defroster
Front A/C
Radio (with USB interface)
2 Speakers
Special Equipment
Stainless steel side wall
Pattern aluminum non-slip floor
Cargo lamp
Stainless steel insulation sealing door
