A6

Model introduction

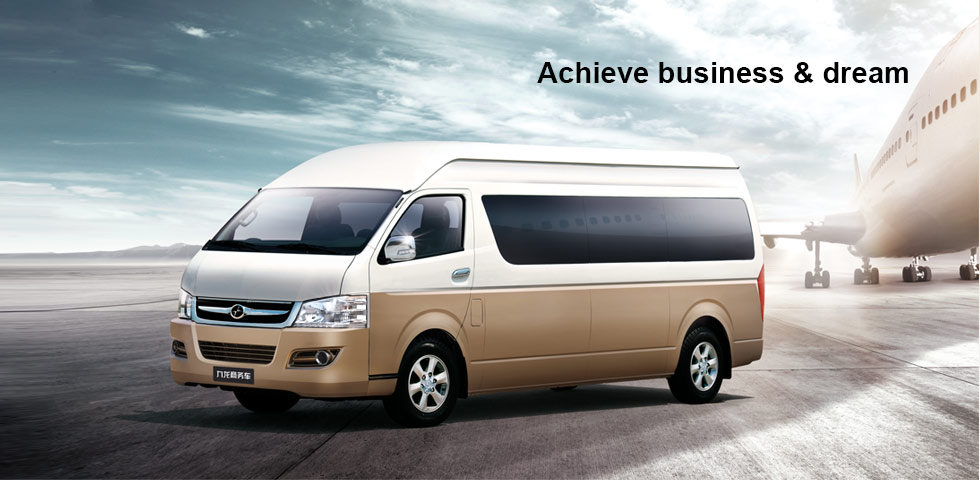

Achieve business & dream

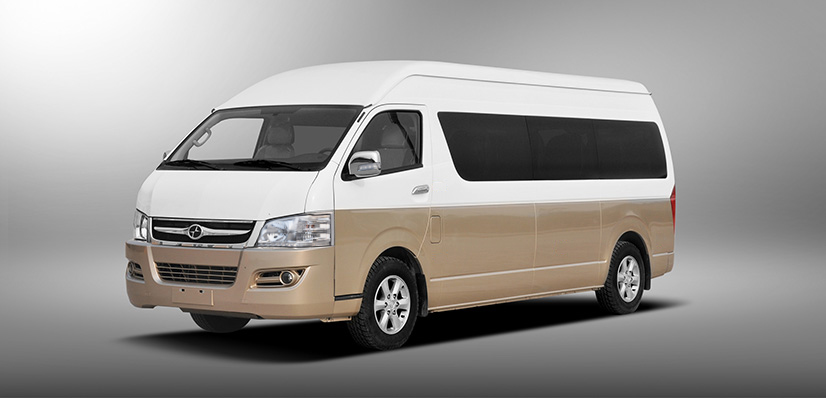

The innovator of Chinese business vehicle, stable and elegant, shows the leading business model. Changing the traditional Hiace space constraints, extending the body length to 5.99m, it brings an extra row of profit space.

Model highlights

Large space Gain weapon
5.99m long body has one more row seat space, which is more efficient operation. 10 to 18 flexible seat layout can be designed according to customer demand for customized operation.
High-end configuration Strong power

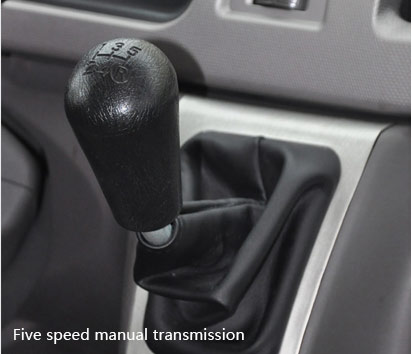

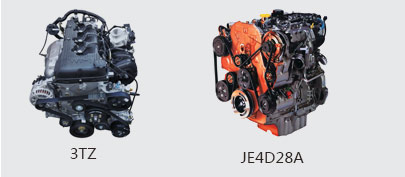

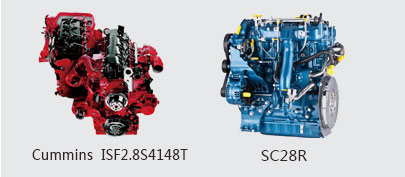

The vehicle provides high-end, various seat selection, equipped with excellent performance and super strong power 3TZ, JE4D28A, Cummins ISF2.8S4148T and SC28R engine to provide efficient dynamics. At the same time matching the flexible and simple five speed manual transmission system, it provides an honorable business trip, and you can go with your heart.

Light body Lower fuel consumption

Monocoque body design can make the body lighter, more stable and strong; Also equipped with five speed manual, with a variety of classic engines, efficient and strong power, it can reduce the fuel consumption, which is not only energy saving and environmental, but also reduces the cost of operation costs.

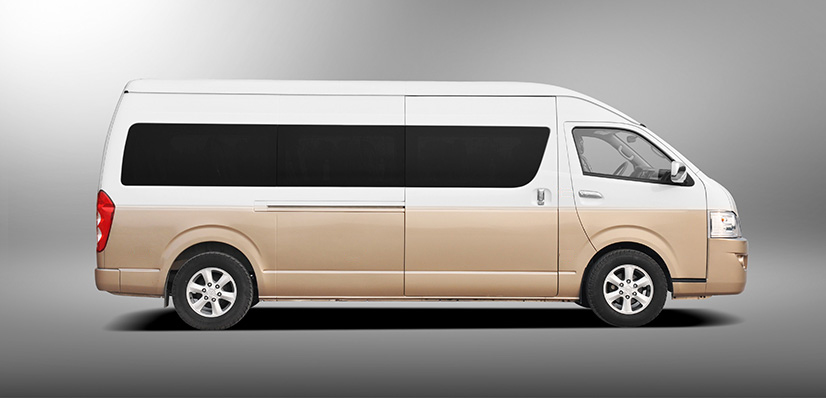

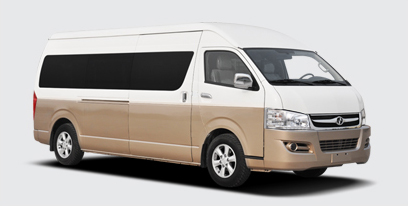

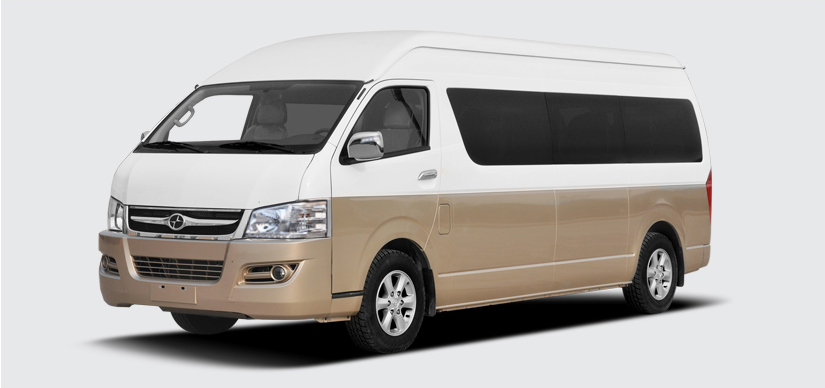

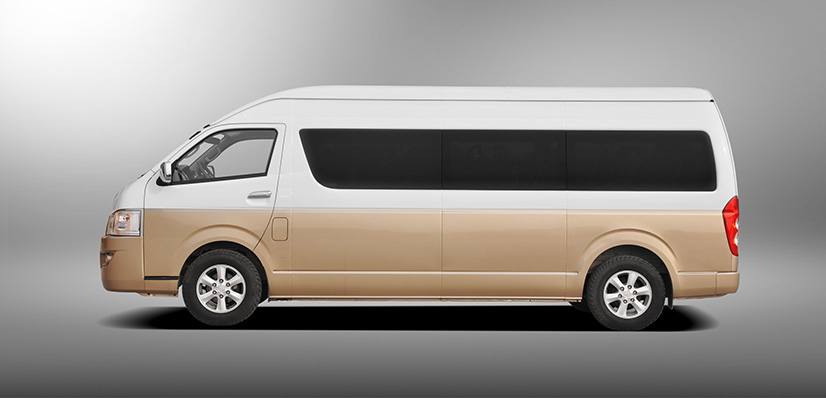

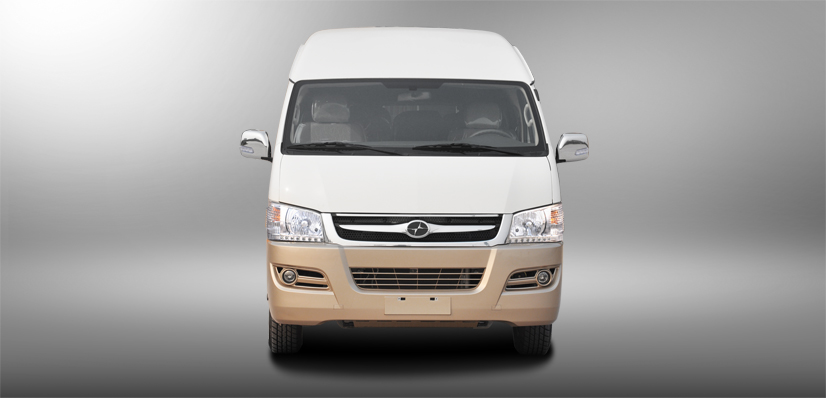

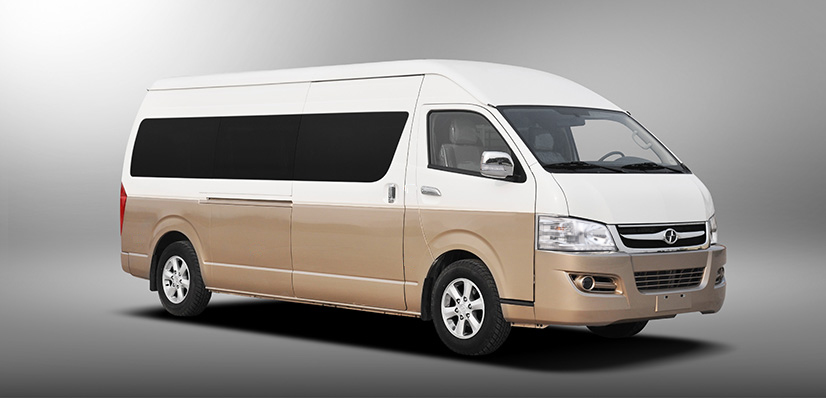

Exterior

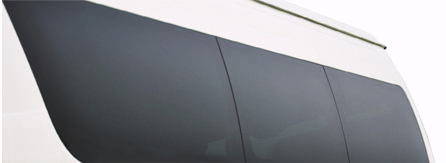

Privacy broad side window

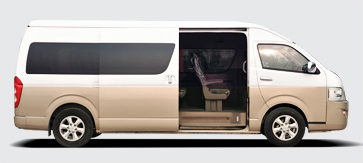

Super high and wide side sliding door (Optional electric door)

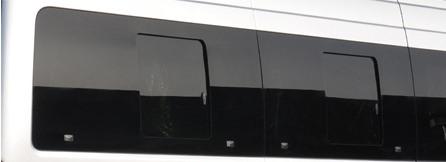

Built-in sliding window

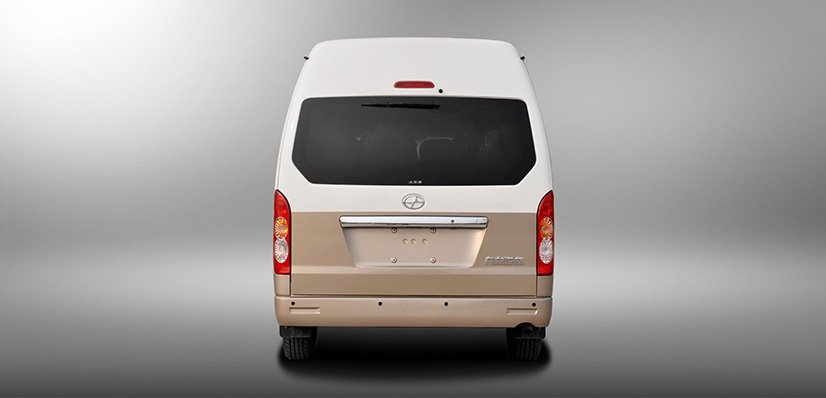

Classic front and rear lights

Optional color

  • White & light tan
  • Silver & gray
  • White
  • Silver
  • Gray
  • Blue

Interior

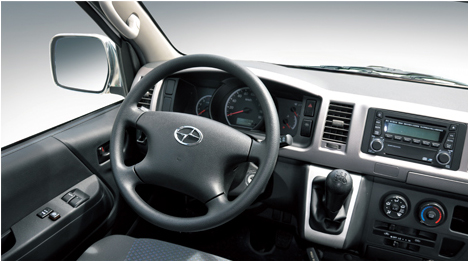

Elegant dark gray interior highlights sedate and restrained; Simple central control instrument design makes the operation flexible; Adjustable steering wheel brings you an easy driving. In addition to standard seat, you may choose aero seat/ administrative seat, rear hanging seat, folding seat and other different seat. GPS, color reversing display, anion air purifier, 15 inch LCD monitor and so on will give you an honorable business travel.

Standard configuration

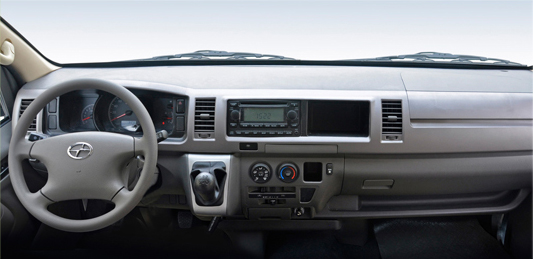

Central control board
Independent air conditional system

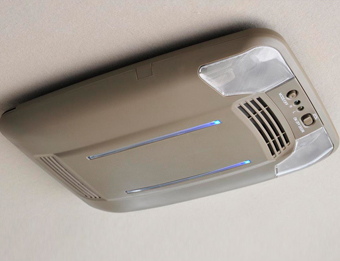

Anion air purifier
Adjustable steering wheel

Optional configuration

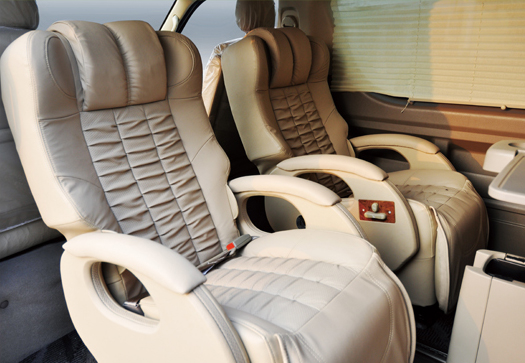

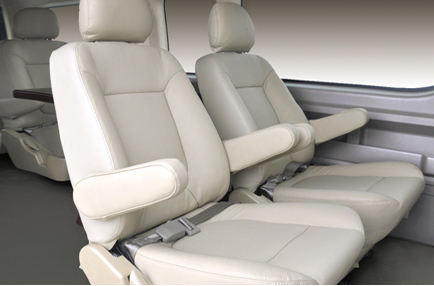

Luxurious seat
Aero seat
Rear luggage area
Administrative seat

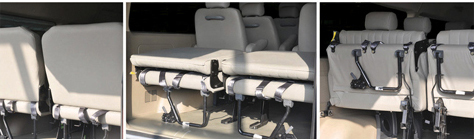

Rear hanging seat, folding seat

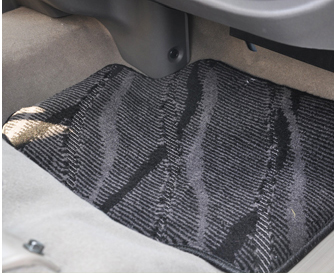

Decorated mat

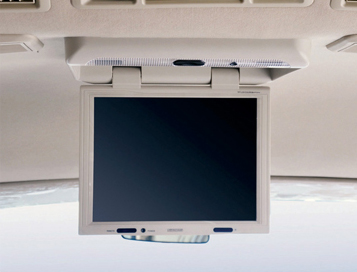

15 inch folding LCD screen

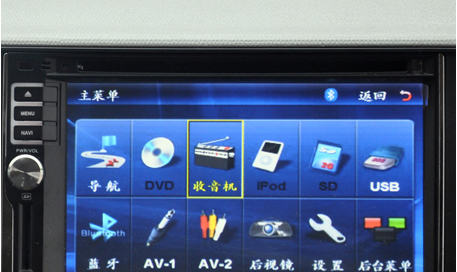

DVD audio and video system

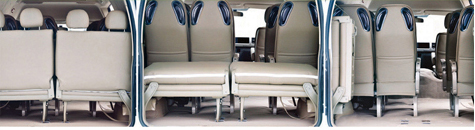

Seating layout

Vehicle configuration

JOYLONG A6
ModelHKL6600AHKL6600CVHKL6600CE
Basic parameter
Length*width*height (mm)5990×1880×23205990×1880×23205990×1880×2320
Wheelbase(mm)372037203720
Seating capacity10-1810-1810-18
Fuel tank capacity (L)707070
Max. speed(km/h)130130130
Engine model3TZ4GA1-2JE4D28ASC28R
Emission standardEURO-IVEURO-IVEURO-IVEURO-V
Displacement(L)2.72.0T2.82.8
Rated power(kW/rpm)120/4600-5000140/5000103/3200105/3200
Max. torque(N.M/rpm)260/2600-3600290/1800-4000360/1600350/1600-2400
Fuel typeGasolineGasolineDieselDiesel
GearboxFive speed manual transmission
Tire215/75R16C Radial tire
Brake systemFront disc rear drum,  ABS+EBD, Intelligent brake booster system
SuspensionFront double wishbone independent suspension, rear variable stiffness leaf spring
MufflerCatalyst , mufflerSCR
Main configuration
Intermittent front wiper, rear wiper
Rear electric defroster
Up and down adjustable steering wheel
Reverse sensor
Electric central control door lock
Electric rear mirror
High mount brake lamp
Aluminum alloy rim5 Aluminum alloy rims5 Aluminum alloy rims5 Aluminum alloy rims5 Aluminum alloy rims
Body color strip
Anti UV front windshield
Dark gray privacy side window glass
Luxurious flocking carpet
Luxurious decorated matOptionalOptionalOptionalOptional
Front seat heater ( including defroster)
Rear seat heater
Front and rear independent A/C
Spray type air conditional outlet
Double top evaporator
Anion air purifier
Central storage box

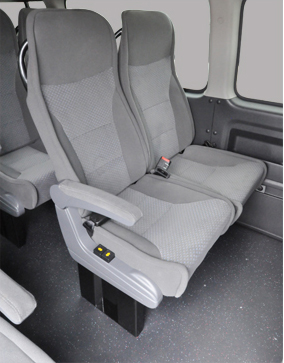

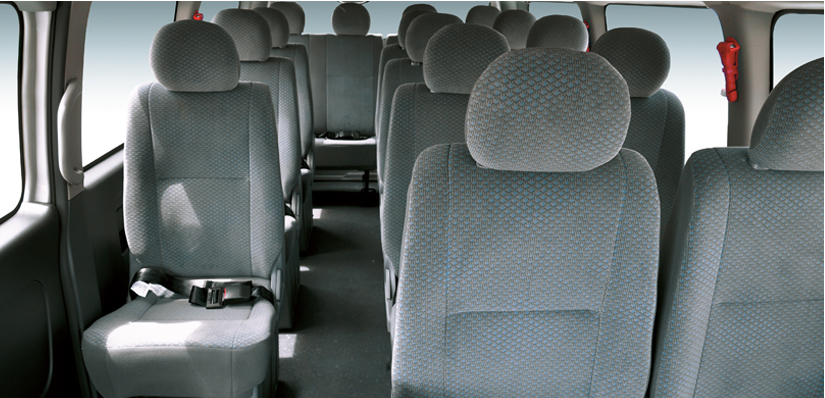

Standard seat
Aero seat/Administrative seatOptionalOptionalOptionalOptional
Rear hanging seat/ folding forward seatOptionalOptionalOptionalOptional
Administrative deskOptionalOptionalOptionalOptional
CD Sound system
Speaker(6)(6)(6)(6)
GPS, DVD, Reverse displayOptionalOptionalOptionalOptional
15 inch manual folding LCD screenOptionalOptionalOptionalOptional
PVC floor leather/Quartz sand floor leatherOptionalOptionalOptionalOptional
Electric sliding doorOptionalOptionalOptionalOptional
Built-in sliding windowOptionalOptionalOptionalOptional
Refrigerated incubatorOptionalOptionalOptionalOptional
