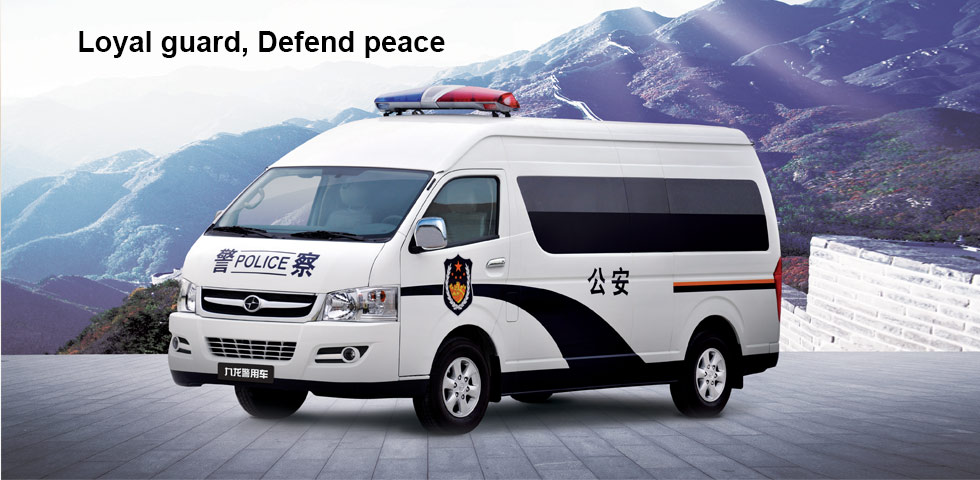

Product display

Model highlight

Complete special Equipment

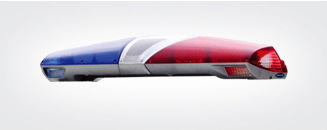

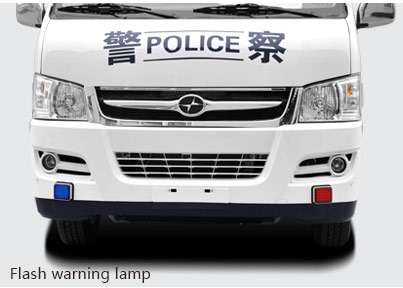

Roof mounted flash alarm lights
Driver’s cab and prison cell separated by stainless steel

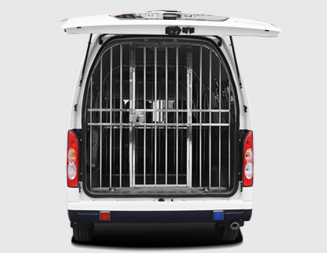

Side windows and rear window set stainless steel guardrail

Strong power

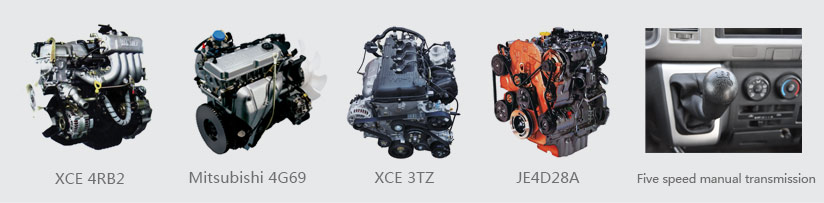

It is equipped with large power and strong dynamic engine including XCE 4RB2/Mitsubishi 4G69/XCE 3TZ and JE4D28A, matched with flexible five speed manual transmission system, In this way can police be swift to act.

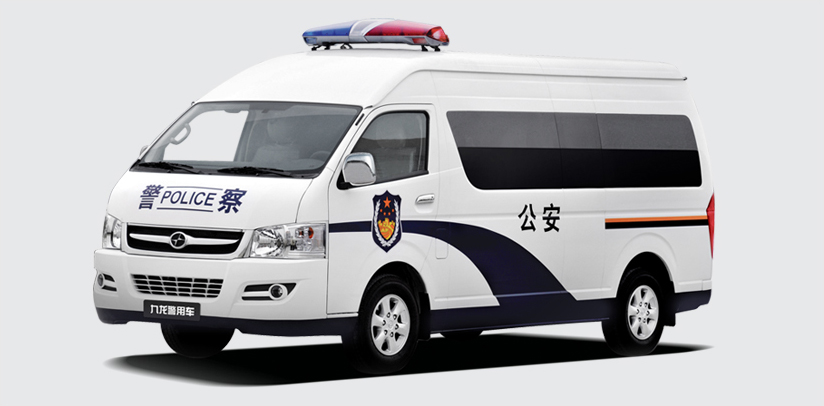

Exterior

Interior

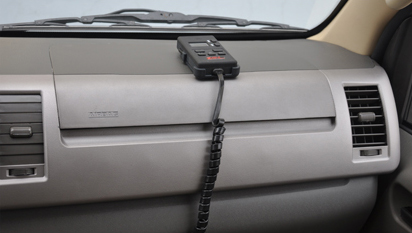

Alarm apparatus

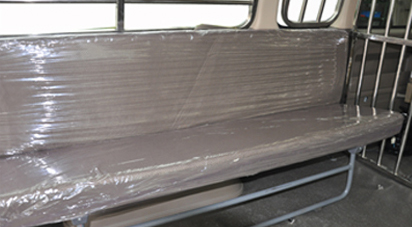

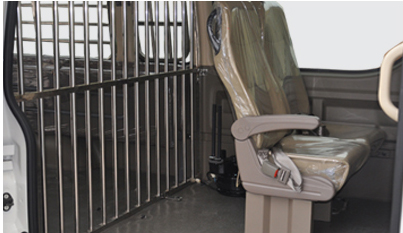

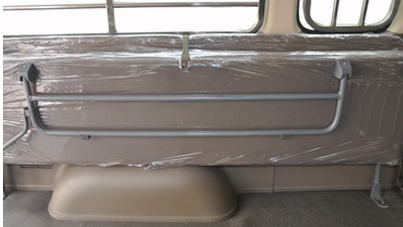

Folding chair

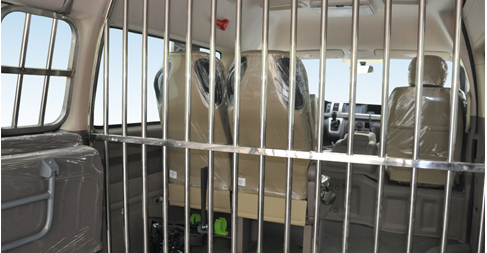

Stainless steel isolation rail

Plane layout

Model equipment

ModelA5 Police vanA6 Police van
HKL5030XQCE4HKL5040XQCAHKL5040XQCCV
 Parameter
length*width*height(mm)5380×1880×24405990×1880×2485
Wheelbase(mm)31103720
Seating capacity10--1410--17
 Fuel tank capacity(L)7070
Max. speed(km/h)140140
Engine model4RB24G69S4N3TZJE4D28A
Emission standardEURO-IVEURO-IVEURO-IVEURO-IV
Displacement(L)2.4382.3782.6932.776
Rated power(kw/rpm)102/4600-5000100/5250120/4600-5000103/3200
Max. torque (N.m/rpm)217/2600-3200200/2500-4000260/2600-3600360/1600
Fuel typeGasolineGasolineDiesel
GearboxFive speed manual transmissionFive speed manual transmission
TireRadial tireRadial tire
Brake systemFront disc rear drum, ABS+EBD, Intelligent brake assistance system
SuspensionFront double wishbone independent suspension, Rear variable stiffness leaf spring
Prison Van special equipment
Exterior2004 version police logo
Alarm and lightsRoof-mounted long flash alarm and lights
Isolation fenceStainless steel isolation fence between driving cab and the cell
FenceSide and rear windows with stainless steel fence post
ShacklesFour set of fixed foot shackles within the cell
