Product display

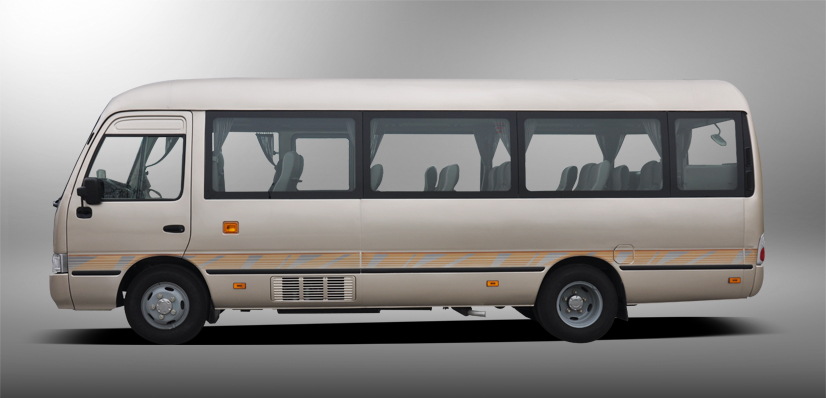

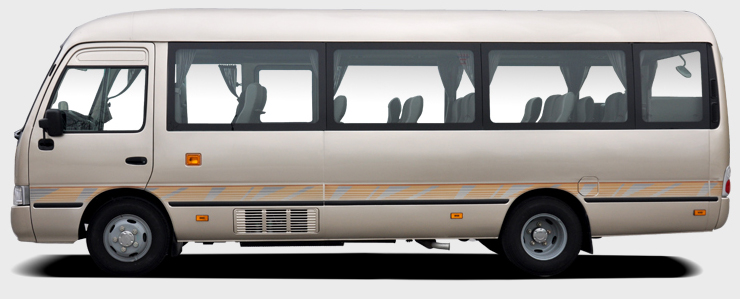

Coaster

Model introduction

Excellent quality win business travel
It has classic exterior design, large space, and high-rank configuration. Equipped with a more quiet engine of JE4D28A, more convenient and high-grade electric sliding door, flexible and comfortable seat layout and so on, excellent quality win a new trend business travel.

Model highlights

Honorable exterior High quality

We combine classic look with the fashion element, providing champagne mental paint for the body, more high-grade. The vehicle adopts electrophoresis pretreatment and "Three coating three drying" coating process, durable.

Strong power Mute fuel-efficient

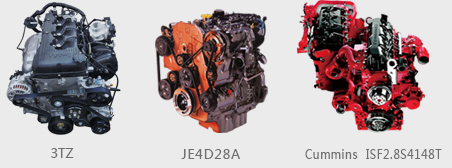

It can be equipped with Italian technology JE4D28A engine or XCE JM495, Cummins ISF series, three optional engines, strong power mute and fuel efficiency.

Large space
According to customer demand, they can customize their own seat layout, 10-23 seat large space, going with your heart.
Reception tourism &business preferred
Joylong coaster with superior performance, high-grade quality, is the first model choice for hotel reception, company bus, airport, tourist transportation and lease.

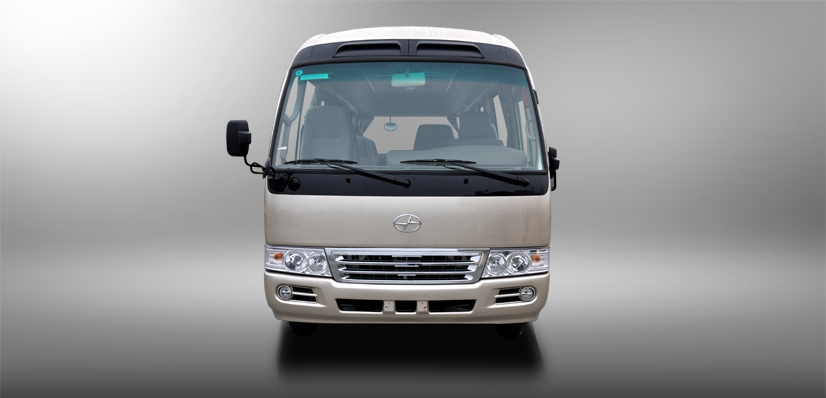

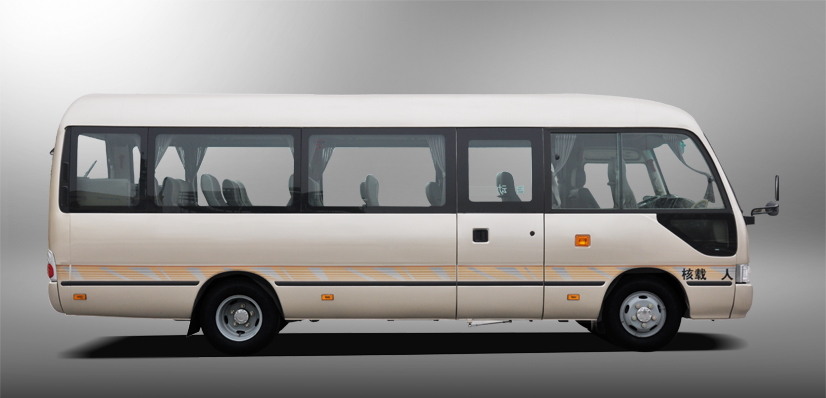

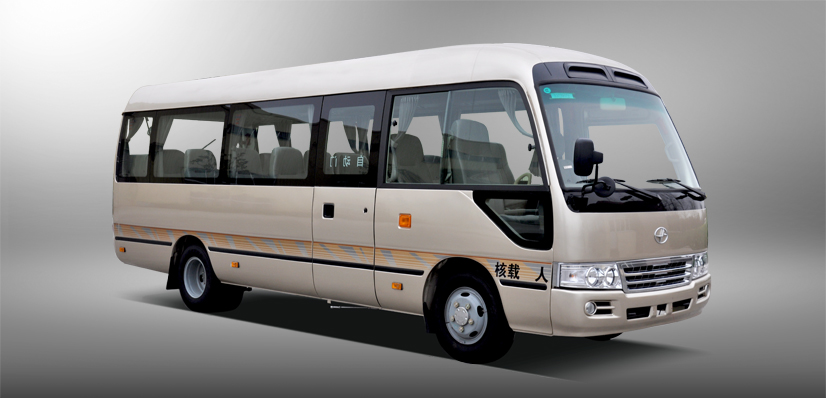

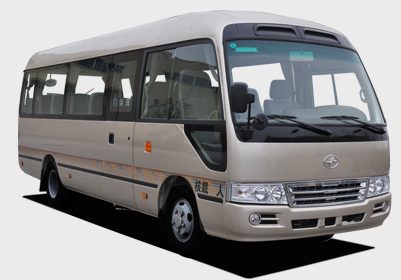

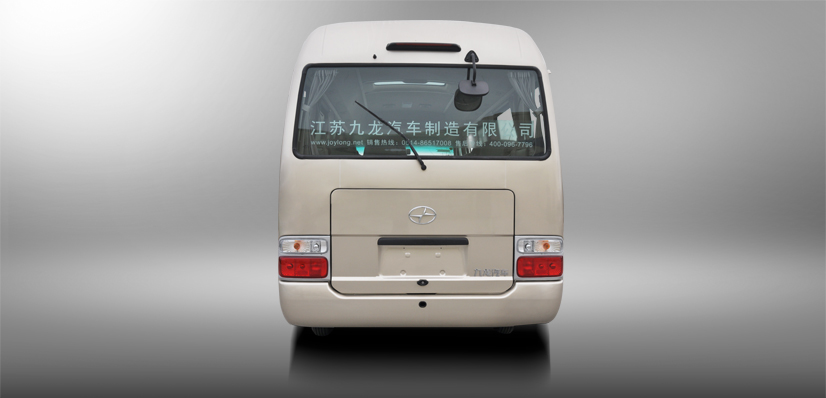

Exterior

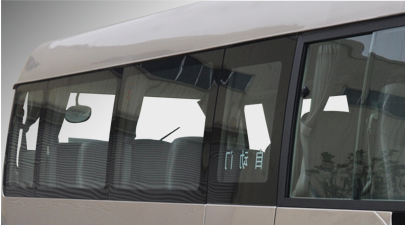

Full closed tempering glass side window

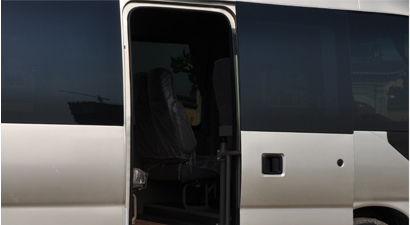

Electric external swinging door
Pull rod type backing mirror

Cathodic electrophoresis

Joylong coaster adopt cathodic electrophoresis process with the vehicle full immersion, it has superior resistance to smoke, heat and moisture resistance, climate adaptability is stronger, can reach 10 years of safe preservation standards.

Six colors for optional

Interior

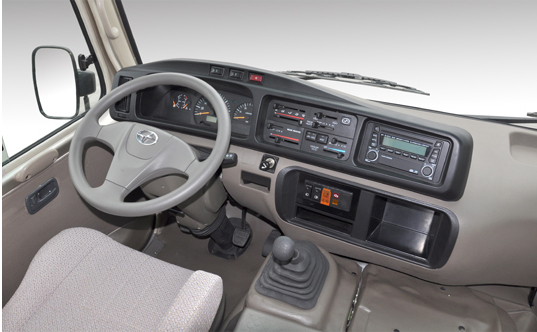

Driving zone

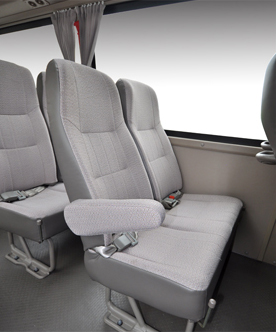

Standard fabric seat

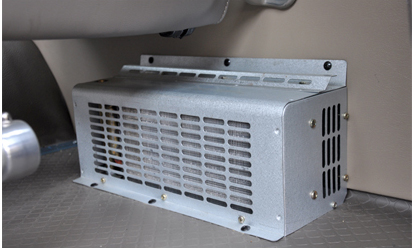

Heater

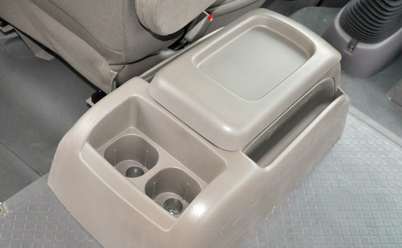

Driving area central storage box
Rear hanging seat

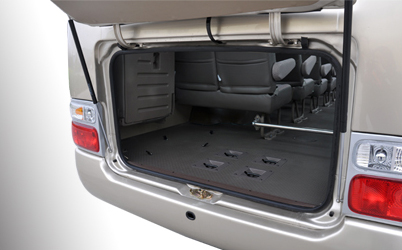

Rear luggage compartment

Seating layout

Vehicle configuration

ModelHKL6700AHKL6701CVHKL6701CVHKL6700AHKL6701CA
Dimension
length*width*height(mm)Length (mm)70057005700570057005
Width (mm)20402040204020402040
Height (mm)2645/27252645/27252645/27252645/27252645/2725
 Wheelbase (mm)39353935393539353935
 Wheel trackFront wheel  (mm)16651665169016901690
rear wheel (mm)15251525149014901490
Minimum ground clearance170170175170175
Front overhang (mm)11501150115011501150
Rear overhang (mm)19201920192019201920
Approach angle (°)≥15≥15≥15≥15≥15
Departure angle (°)≥10≥10≥10≥10≥10
Passenger capacitySeats:10-23; Operating level seats: intermediate 21 + 1
Curb mass (kg)42504350400040004000
Gross mass  (kg)62506300600060506000
Chassis configuration
Transmission typeRemote control with soft shaft, manual 5 speeds
Tire7.00R16-12PR radial tire- with inner tire
AxlesIntegral front/rear axlesFront independent axle/ Rear integral axle
SuspensionFront 3/rear 4 leaf spring, Front stabilizer barFront independent torsion rod suspension, Rear leaf spring
Fuel tank capacity (L)9090909090
Parameter
Min. turning diameter (m)≤17≤17≤17≤17≤17
Dynamic propertyMax. speed (km/h)≥100≥100≥100≥100≥100
Climbing25%30%30%25%30%
Fuel consumption (L/100km)1311111311
Engine
Engine model3TZJE4D28AJE4D28A3TZISF2.8S4148T
Air inlet modeNaturally aspiratedTurbo charger, inter coolerTurbo charger, inter coolerNaturally aspiratedTurbo charger, inter cooler
Rated power (kw/rpm)120/4600-5000103/3200103/3200120/4600-5000110/3200 (150Ps)
Max. torque (N.m/rpm)260/2600-3600360/1600-2200360/1600-2200260/2600-3600360/1800-2700
Fuel typeGasolineDieselDieselGasolineDiesel
Emission standardEURO-IV  EURO-IV  EURO-IV  EURO-IV  EURO-IV
Displacement (L)2.6932.7762.7762.6932.78
