Product display

Transfer ambulance

Model introduction

Efficiency safety, Arrive in time
Time is life. Joylong ambulance equips with a powerful engine and a fully equipped modern medical emergency facilities, to ensure that every time the rescue is highly effective and timely to defend the dignity of every life.

Model highlight

Complete special Equipment, Ensure efficient rescue
Joylong ambulance with its large space design, reasonable layout and reliable quality to win the praise of customers at home and abroad; Medical room space is capacious, the layout is reasonable, can fully meet the space requirements of emergency rescue; Medical cabin roof adopts disposable composite materials, waterproof antifouling, convenient cleaning; Medicine cabinet made of high density PVC sheet moisture proof prevent bacteria, environmental health; The energy saving and high efficiency LED lights are used in the compartment. And the driving seat leather package, high-end atmosphere; According to the different needs of customers for personalized design.
Strong power, rapid rescue

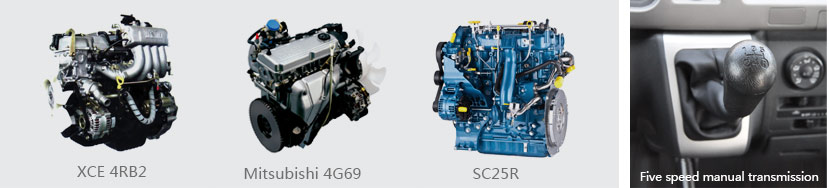

It is equipped with large power and strong dynamic engine including XCE 4RB2/Mitsubishi 4G69/XCE 3TZ and JE4D28A, matched with flexible five speed manual transmission system, In this way can police be swift to act.

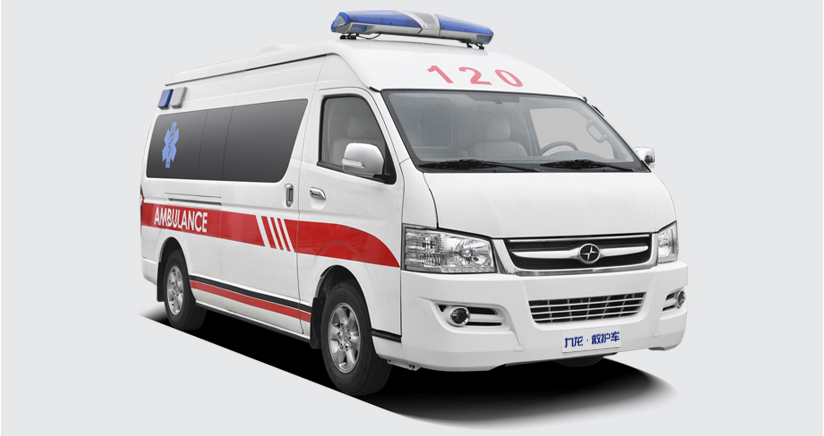

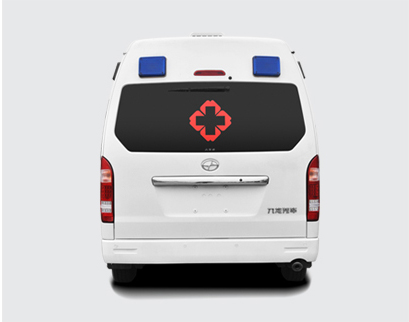

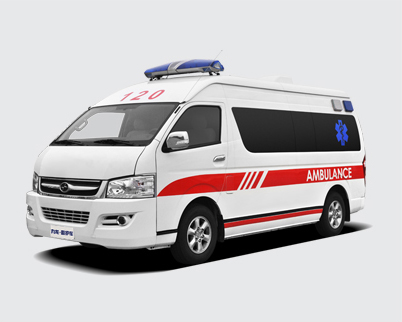

Exterior

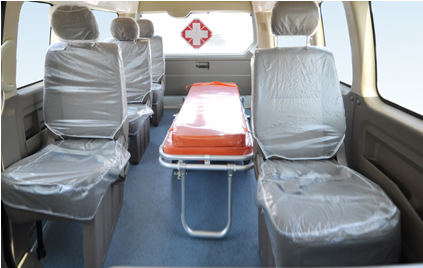

Interior

Siren ( include call device)
Intercom system
Rear spotlight
Oxygen cylinder with fixed bracket
Electric fan
Transfusion rack
Glass fibre reinforced plastic ceiling

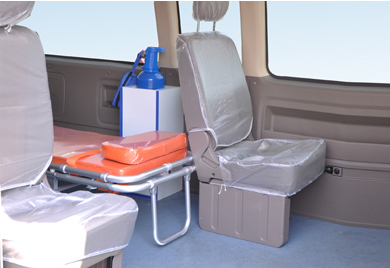

Wheeled stretcher
Wheeled stretcher rear fixing device
Middle partition sliding window
Comprehensive medicine cabinet
Ultraviolet disinfection lamp

Plane layout

Vehicle configuration

ModelA4 Ambulance
HKL5031XJHE4HKL5030XJHAHKL5040XJHCA
Basic Parameter
Overall length*width*height(mm)4840/4960×1880×2235/2440
Wheelbase(mm)2570
Seating capacity5-83-73-7
Fuel tank capacity(L)70
 Max. speed(km/h)≥140
Engine model4RB24G69S4NJM491Q-MESC25R
Emission standardEURO-IVEURO-IVEURO-IVEURO-IV
Displacement(L)2.4382.3782.2372.499
Rated output(kw/rpm)102/4600-5000100/525078/4600100/3800
Max. torque (N.m/rpm)217/2600-3200200/2500-4000193/2600-3200330/1800-2400
Fuel typeGasolineGasolineDiesel
 GearboxFive speed manual transmission
Brake systemFront disc rear drum, ABS+EBD, Intelligent brake assistance system
SuspensionFront double wishbone independent suspension, Rear variable stiffness leaf spring
Transfer Type Special Equipment
Warning light & siren, Roof ventilation fan, disinfection lamp, partition wall with observation window, drug cabinet, wheeled stretcher, Oxygen tank stent, transfusion bracket & hook, roof lights, 220V/12V inverter, stainless steel dirt tub, etc.
ModelA5 Ambulance
HKL5030XJHE4HKL5040XJHAHKL5041XJHCA
Basic Parameter
Overall length*width*height(mm)5380/5530×1880×2440
Wheelbase(mm)3110
Seating capacity5-73-73-7
Fuel tank capacity(L)70
 Max. speed(km/h)≥140
Engine model4RB24G69S4N3TZSC25R
Emission standardEURO-IVEURO-IVEURO-IVEURO-IV
Displacement(L)2.4382.3782.6932.499
Rated output(kw/rpm)102/4600-5000100/5250120/4600-5000100/3800
Max. torque (N.m/rpm)217/2600-3200200/2500-4000260/2600-3600330/1800-2400
Fuel typeGasolineGasolineDiesel
 GearboxFive speed manual transmission
Brake systemFront disc rear drum, ABS+EBD, Intelligent brake assistance system
SuspensionFront double wishbone independent suspension, Rear variable stiffness leaf spring
Transfer Type Special Equipment
Warning light & siren, Roof ventilation fan, disinfection lamp, partition wall with observation window, drug cabinet, wheeled stretcher, Oxygen tank stent, transfusion bracket & hook, roof lights, 220V/12V inverter, stainless steel dirt tub, etc.
