Guardianship type ambulance

Model introduction

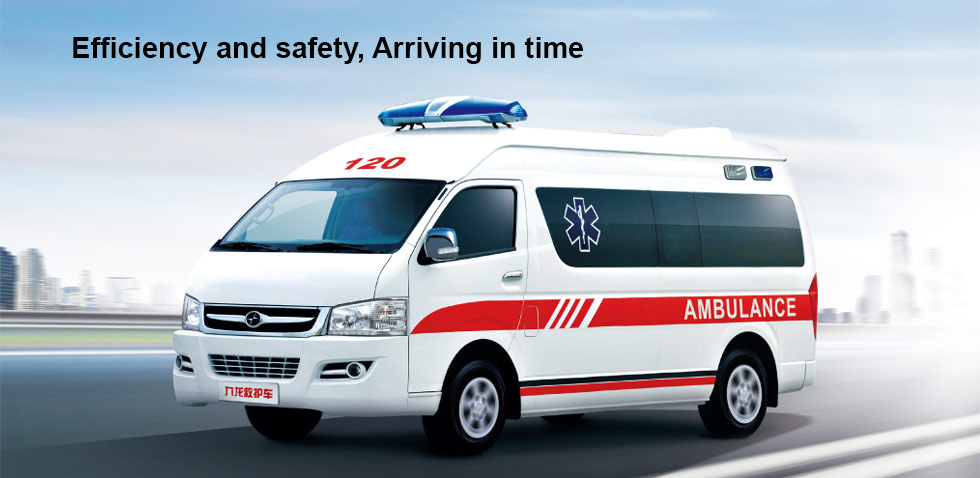

Efficiency and safety, Arriving in time
Time is life. Joylong ambulance is equipped with a powerful engine and fully complete modern medical emergency facilities to ensure that every time the rescue is highly effective and timely to defend the dignity of every life.

Model highlight

Complete special Equipment, Ensuring efficient rescue
Joylong ambulance with its large space design, reasonable layout and reliable quality to win the praise of customers at home and abroad; Medical room space is capacious, and the layout is reasonable to fully meet the space requirements of emergency rescue; Medical cabin roof adopts disposable composite materials, which is waterproof, antifouling and convenient cleaning; Medicine cabinet is made of high-density PVC sheet, both moisture proof and fungus proof, ensuring environmental health; The energy saving and high efficiency LED lights are used in the compartment. And the driving seat leather package brings high-end atmosphere; According to the different needs of customers, we can customize personalized design.

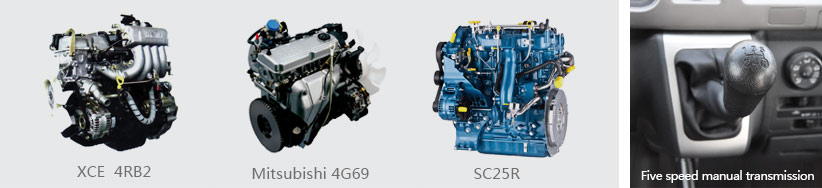

Strong power, efficient rescue
It is equipped with a variety of power strong engines and matched with flexible five speed manual transmission system in order to ensure the security of life.

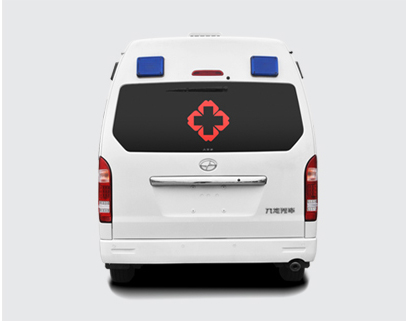

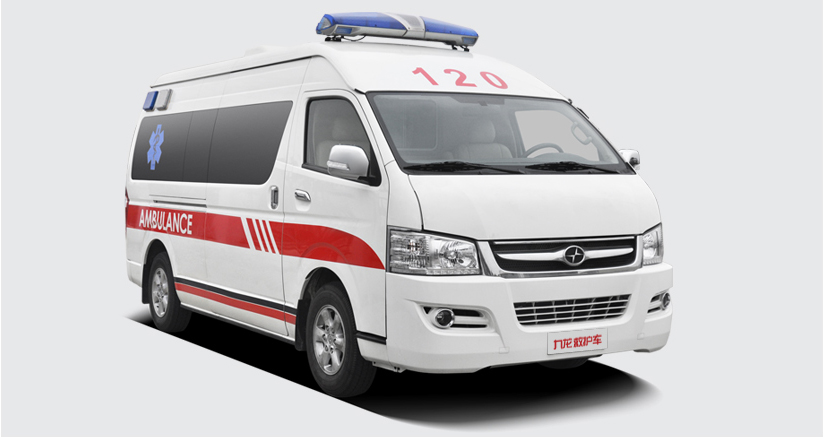

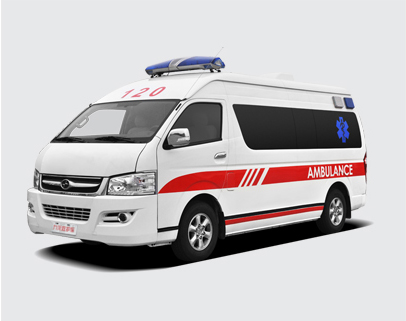

Exterior

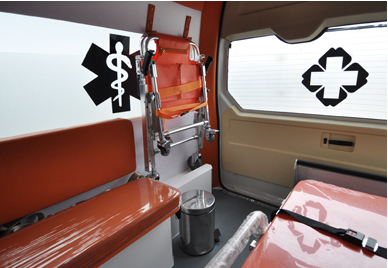

Interior

Siren ( include call device)
Intercom system
Rear spotlight
Annular ultraviolet disinfection lamp (left), Operation lamp (right)
Middle partition sliding window
One time molding material inner top
Transfusion rack
Power control panel
Comprehensive control panel, Oxygen humidification device

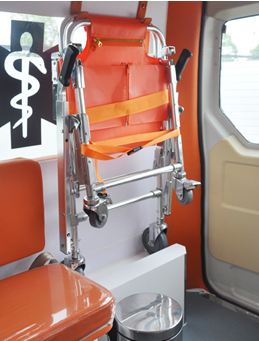

Stretcher trolley
Unilateral escort seat
Spinal splint
Shovel stretcher

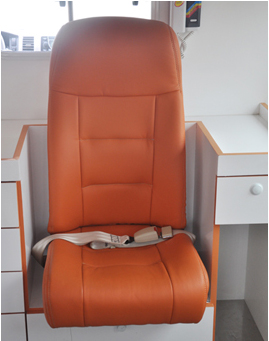

doctor seat

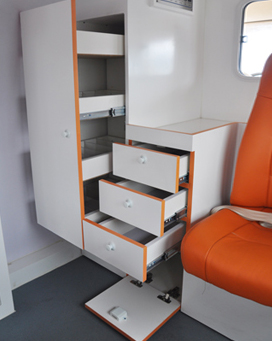

medicine cabinet
stretcher

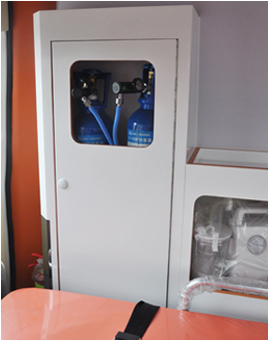

Comprehensive medical equipment cabinet

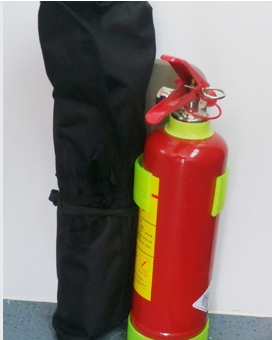

Extinguisher

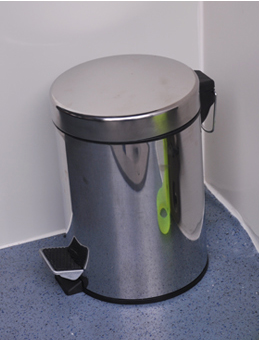

Stainless steel dirt bucket

Plane layout

Model Equipment

ModelA4 Ambulance
HKL5031XJHE4HKL5030XJHAHKL5040XJHCA
Basic Parameter
Overall length*width*height(mm)4840/4960×1880×2235/2440
Wheelbase(mm)2570
Seating capacity5-83-73-7
Fuel tank capacity(L)70
 Max. speed(km/h)≥140
Engine model4RB24G69S4NJM491Q-MESC25R
Emission standardEURO-IVEURO-IVEURO-IVEURO-IV
Displacement(L)2.4382.3782.2372.499
Rated output(kw/rpm)102/4600-5000100/525078/4600100/3800
Max. torque (N.m/rpm)217/2600-3200200/2500-4000193/2600-3200330/1800-2400
Fuel typeGasolineGasolineDiesel
 GearboxFive speed manual transmission
Brake systemFront disc rear drum, ABS+EBD, Intelligent brake assistance system
SuspensionFront double wishbone independent suspension, Rear variable stiffness leaf spring
Transfer Type Special Equipment
Warning light & siren, Roof ventilation fan, disinfection lamp, partition wall with observation window, drug cabinet, wheeled stretcher, Oxygen tank stent, transfusion bracket & hook, roof lights, 220V/12V inverter, stainless steel dirt tub, etc.
ModelA5 Ambulance
HKL5030XJHE4HKL5040XJHAHKL5041XJHCA
Basic Parameter
Overall length*width*height(mm)5380/5530×1880×2440
Wheelbase(mm)3110
Seating capacity5-73-73-7
Fuel tank capacity(L)70
 Max. speed(km/h)≥140
Engine model4RB24G69S4N3TZSC25R
Emission standardEURO-IVEURO-IVEURO-IVEURO-IV
Displacement(L)2.4382.3782.6932.499
Rated output(kw/rpm)102/4600-5000100/5250120/4600-5000100/3800
Max. torque (N.m/rpm)217/2600-3200200/2500-4000260/2600-3600330/1800-2400
Fuel typeGasolineGasolineDiesel
 GearboxFive speed manual transmission
Brake systemFront disc rear drum, ABS+EBD, Intelligent brake assistance system
SuspensionFront double wishbone independent suspension, Rear variable stiffness leaf spring
Transfer Type Special Equipment
Warning light & siren, Roof ventilation fan, disinfection lamp, partition wall with observation window, drug cabinet, wheeled stretcher, Oxygen tank stent, transfusion bracket & hook, roof lights, 220V/12V inverter, stainless steel dirt tub, etc.
