Product display

Model highlight

Complete special Equipment

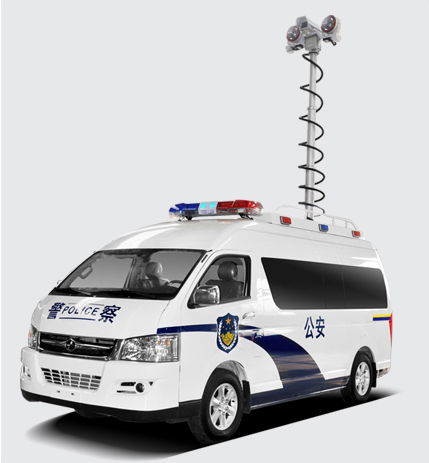

Equipped with advanced lighting and lifting system, image acquisition and processing system and integrated office and data processing system, the van is able to complete the exploration task of traffic accident scene promptly in time.

Strong power

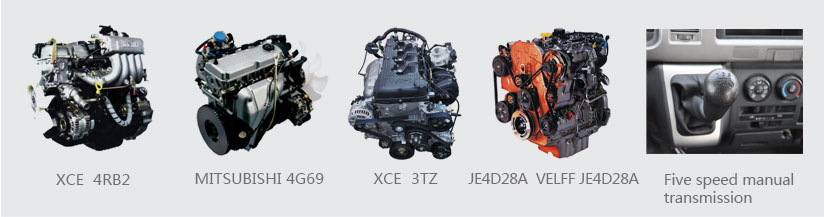

It is equipped with large power and strong dynamic engine including XCE 4RB2/Mitsubishi 4G69/XCE 3TZ and JE4D28A, matched with flexible five speed manual transmission system, In this way can police be swift to act.

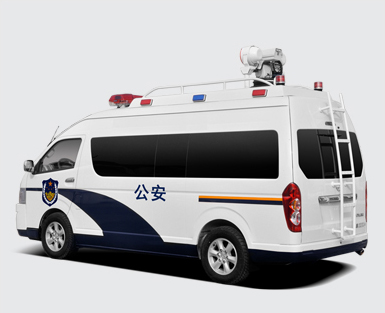

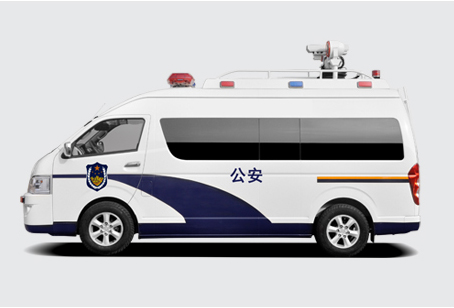

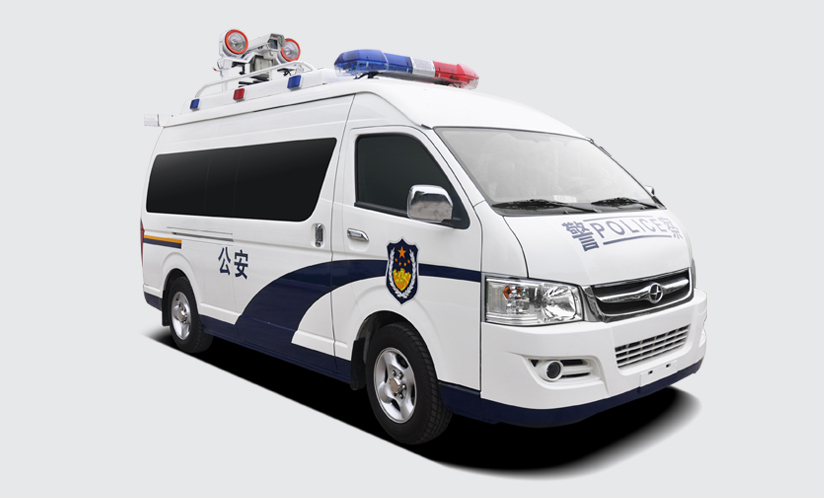

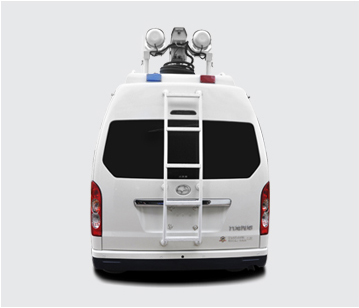

Exterior

Interior

Vehicle mounted office integrated system

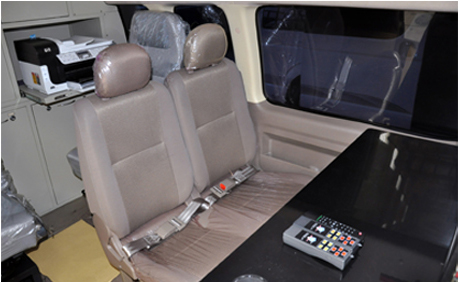

Working area seat

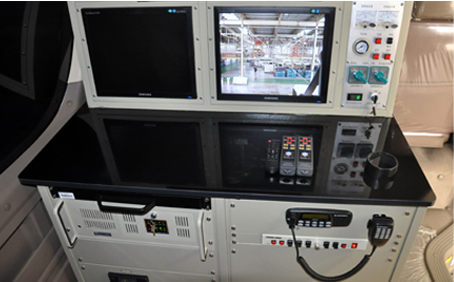

Image acquisition and dispose table
Generator, Refrigerator

Plane layout

Model equipment

ModelA5 Police vanA6 Police van
HKL5030XQCE4HKL5040XQCAHKL5040XQCCV
Parameter
length*width*height(mm)5380×1880×24405990×1880×2485
Wheelbase(mm)31103720
Seating capacity10--1410--17
Fuel tank capacity(L)7070
Max. speed(km/h)140140
Engine model4RB24G69S4N3TZJE4D28A
Emission standardEURO-IVEURO-IVEURO-IVEURO-IV
 Displacement(L)2.4382.3782.6932.776
Rated power(kw/rpm)102/4600-5000100/5250120/4600-5000103/3200
Max. torque (N.m/rpm)217/2600-3200200/2500-4000260/2600-3600360/1600
Fuel typeGasolineGasolineDiesel
GearboxFive speed manual transmissionFive speed manual transmission
TireRadial tireRadial tire
Brake systemFront disc rear drum, ABS+EBD, Intelligent brake assistance system
SuspensionFront double wishbone independent suspension, Rear variable stiffness leaf spring
Accident investigation van special equipment
HID lighting & elevating systemHID dysprosium lamp
 High power dysprosium lamp tripod head
5m elevating system
Remote control system
 Image sampling operation system CCD all-in-one camera
4-channel embedded digital hard disk video recorder
 17 inch LCD display screen

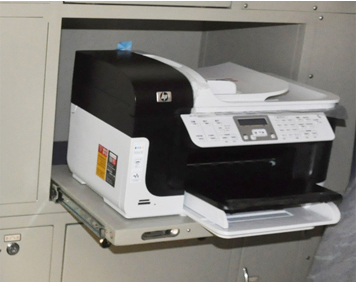

Integrate office & data processingMultifunction machine
LAN
