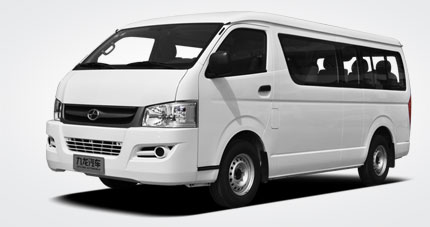

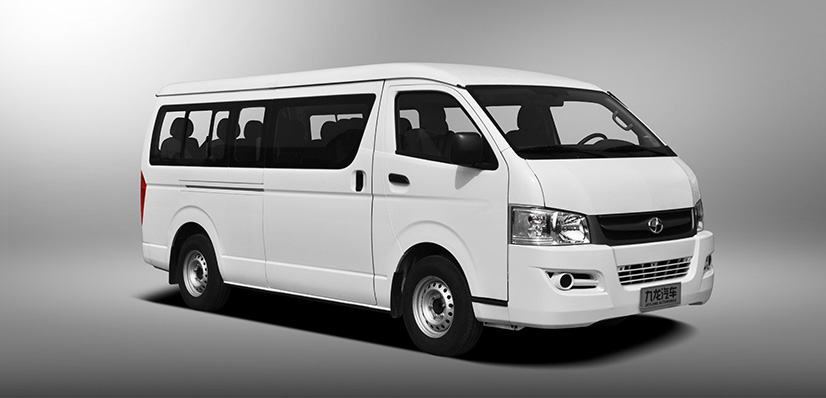

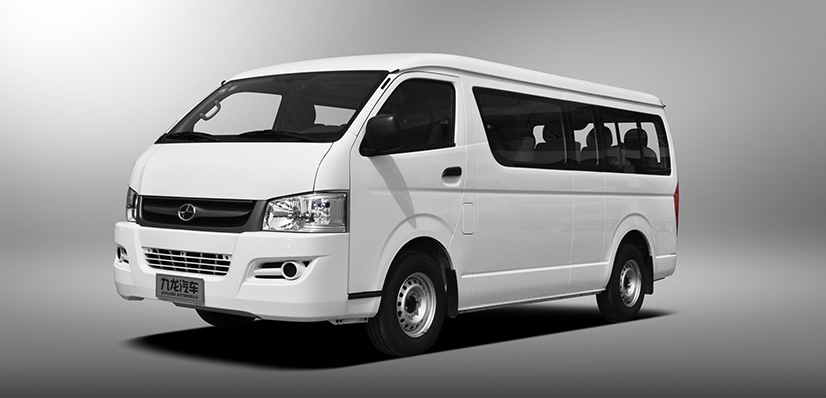

A5S

Model introduction

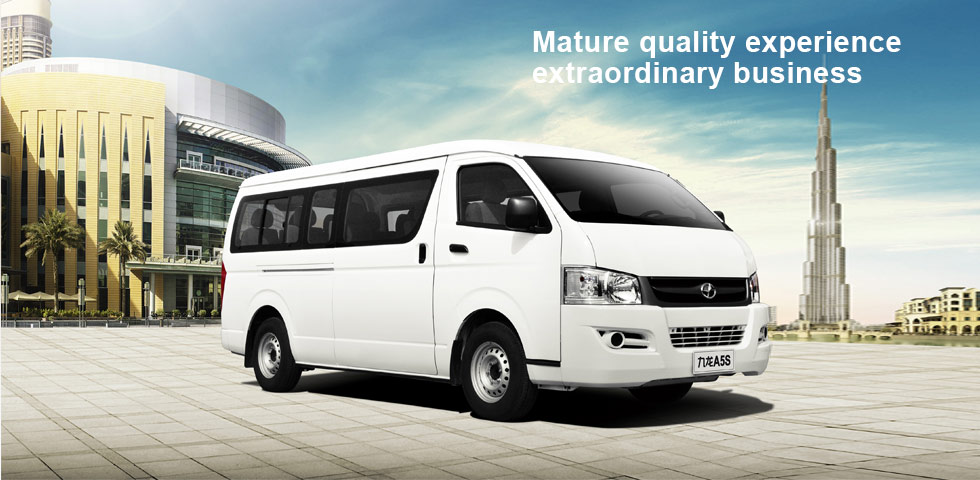

Mature quality experience extraordinary business
A5S is a unified platform for Joylong A5 business vehicles, and the product appearance, quality and performance are the most cost-effective. The model with fashionable appearance, broad side sliding door, and mature quality makes you experience extraordinary business

Model highlights

Fashion & artistic Durable & anti-corrosion

Streamlined body design, delicate square headlamps and circular fog lamp complement each other, highlighting the exquisite workmanship. The vehicle adopts advanced "Three coating three drying" electrophoresis technology, and durable and anti-corrosion body can make it up to 10 years under the normal condition.

Strong power Free driving

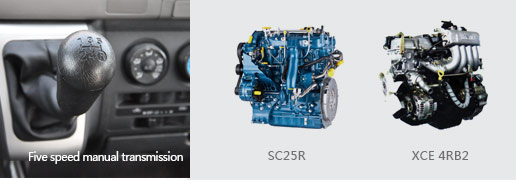

Power device is equipped with gasoline-powered XCE 4RB2 engine, and we also can supply SC25R diesel engine, matching five speed manual gearbox, soft shaft control, strong power, free driving.

Safety protection Multi-direction integration

Full integral body construction is adopted for safety, high reliability, to make the body lighter, reduce fuel consumption, more energy saving and environmental protection; Strong anti-collision bumper and anti roll frame structure design guarantees passive safety performance. In addition, the vehicle is also equipped with reversing radar, ABS + EBD (anti lock braking system and electronic brake force distribution system), non skid door locking, anti glare rearview mirror and optional dual airbags, effectively improving the safety performance of the vehicle.

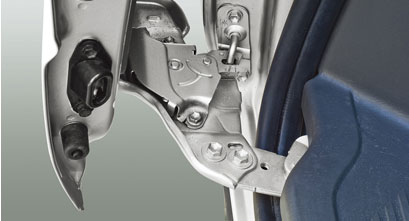

Non skid door locking

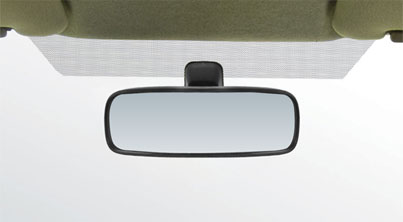

Anti glare rearview mirror

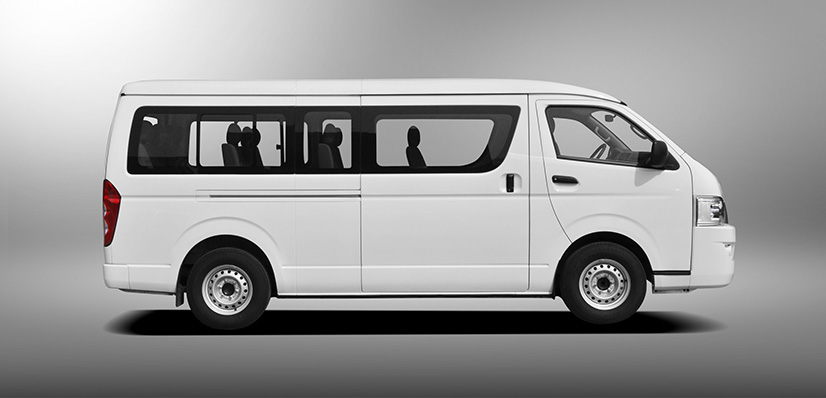

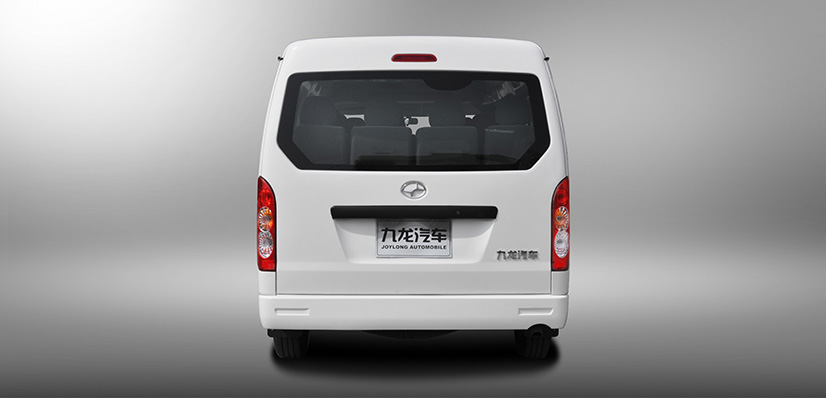

Exterior

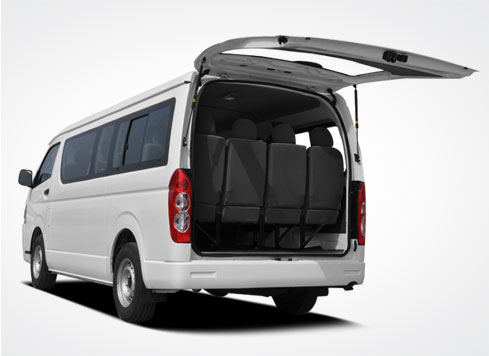

Back door

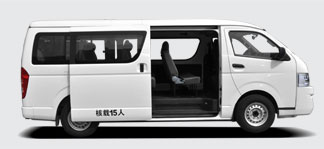

Broad side sliding door

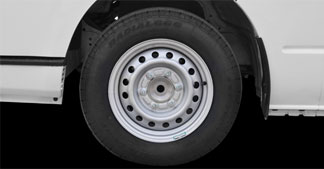

Economic wheel rim

Optional color

Interior

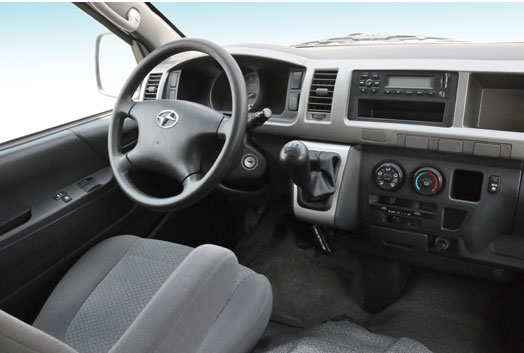

Drive zone
Single visor
Safety hammer
Passenger zone
Ceiling
Air conditioning outlet

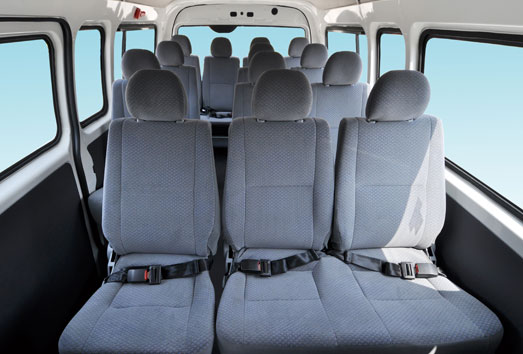

Seating layout

Vehicle configuration

JOYLONG A5S
ModelHKL6540E4HKL6540CA
Basic parameter
Length*width*height (mm)5380*1880*2080
Wheelbase(mm)3110
Max. speed(km/h)130
Fuel tank capacity (L)70
Seating capacity15(2+3+3+3+4)
ClutchSingle chip, hydraulic manipulation
SuspensionFront double wishbone independent suspension, rear variable stiffness leaf spring
GearboxFive speed manual transmission, flexible shaft control
Engine model4RB2SC25R
Emission standardEURO-IVEURO-IV
Displacement(L)2.4382.499
Rated power(kW/rpm)102/4600-5000100/3800
Max. torque(N.M/rpm)217/2600-3200330/1800-2400
Fuel typeGasoline Diesel
Tire 195R15C Radial tire
Brake systemFront disc rear drum, Active vacuum booster
Exhaust after-treatmentTWC, two-stage muffler
Main configuration
Function partManual rearview window, manual door locking
Electric front door& window, anti glare rearview mirror
Intermittent front wiper, front glass scrubber
Up and down adjustable steering wheel
Simple left visor( dark gray)
High mount brake lamp, heater whole vehicle
ExteriorPure paint: white, golden, brown
Manual sliding door, black door handle
Anti UV front windshield, white glass whole vehicle
Passenger area 2 rear side built-in sliding window
Integral combination lamp, spray front grille
Ordinary silver rim
InteriorCombined instrument panel, integral step in door
Lord, co-pilot economic seats: front and rear sliding, adjustable backrest
First row seat, passenger area: 2+1 adjustable backrest
Second row seat, passenger area: 2+1 adjustable backrest
Third row seat, passenger area: 2+1 adjustable backrest
Forth row seat, passenger area: 4 people fixed couplet/ unadjustable backrest
Simple ceiling, simple side trim panel
Front carpet, rear carpet(PVC + scaleboard )
Ordinary toplight  2
Front and rear split type air, direct blowing type air condition outlet
Radio(with USB interface), speaker 2
OptionalFully enclosed dark privacy side window glass
ABS+EBD
Central control door locking(with remote control )
Travelling data recorder
Metal paint
Anti collision radar (rear)
Built-in sliding window(LF,RF)
Aluminum alloy wheel
