A-5

Model introduction

Honorable business Value model

Specially developed for business market, smart and broad space, delicate and luxurious interior, fashionable appearance design, reflects classical aesthetics everywhere, reveals strong business atmosphere, to provide a full range of multiple needs for the enjoyment of infinite comfortable business trip

Vehicle highlights

Fashion & artistic Durable & anti-corrosion

Classic square headlamps and circular fog lamp complement each other. Delicate red rear combination lamp, highlight the exquisite workmanship. Smooth privacy wide side window effectively reduce the driving wind noise, and the body is also smoother. Body adopts international advanced "Three coating three drying" electrophoresis technology. Paint is full and bright, and doesn’t rot for 10 years

Rich configuration Flexible layout

6-15 seat flexible layout brings diversity of space options. Rear passenger area folding chairs can be hung or folded forward, to realize maximize space utilization. Ordinary floor leather, luxurious flocking carpet and many other rich configurations are available for choice, to meet the needs of different customers extremely.

Safety protection Multi-direction integration

Full integral body construction is adopted for safety, high reliability, to make the body lighter,reduce fuel consumption, more energy saving and environmental protection. Strong anti-collision bumper and anti roll frame structure design, guarantee passive safety performance.

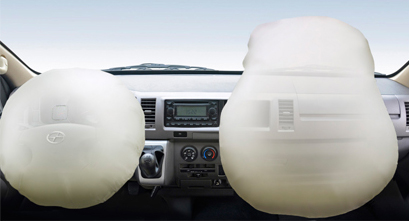

Dual airbags

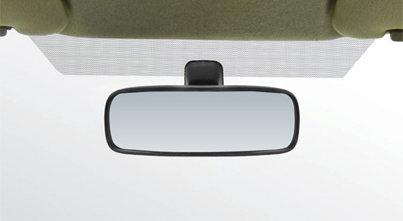

Anti glare rearview mirror

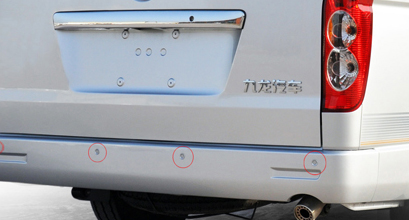

Reversing radar

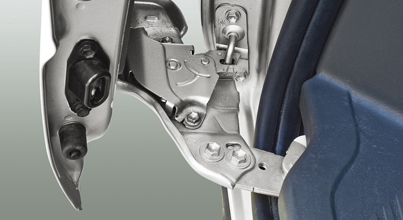

Non skid door locking

Mature power Strong durable

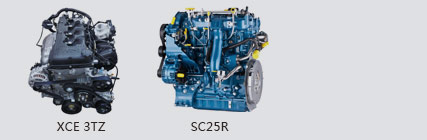

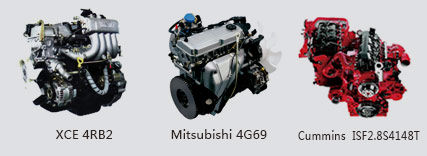

Equipped with five different super power, strong power of XCE 4RB2/ MITSUBISHI 4G69/ Cummins ISF2.8S4148T/ XCE 3TZ/ SC 25R optional engines, matched with flexible and simple operation of 5 speed manual transmission/ 4 speed automatic transmission system, it brings you infinite driving pleasure.

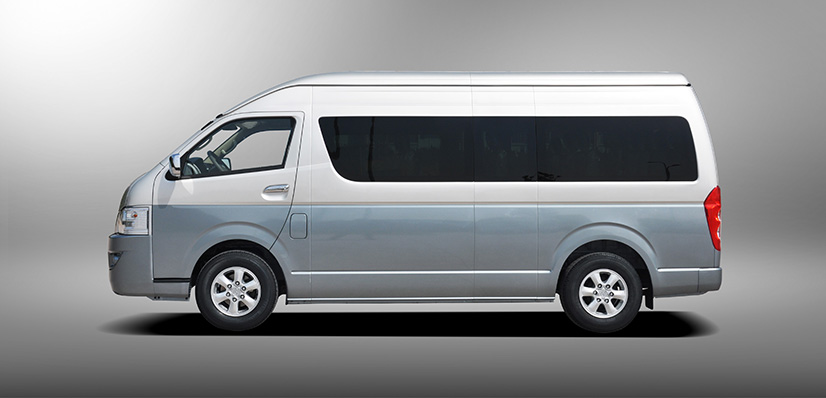

Exterior

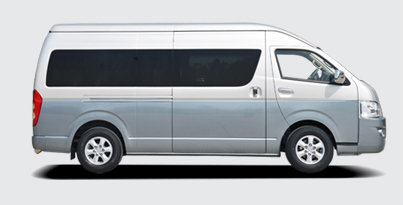

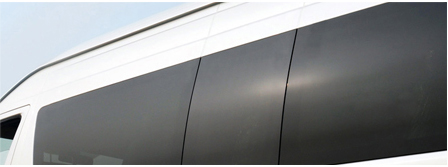

Privacy broad side window

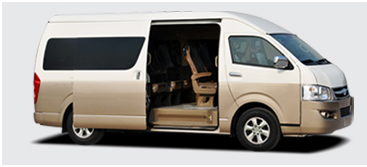

Super high and wide side sliding door
(Optional electric door)

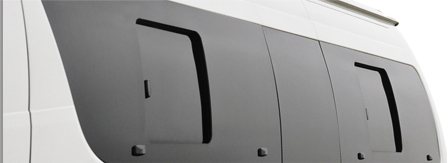

Built-in sliding window

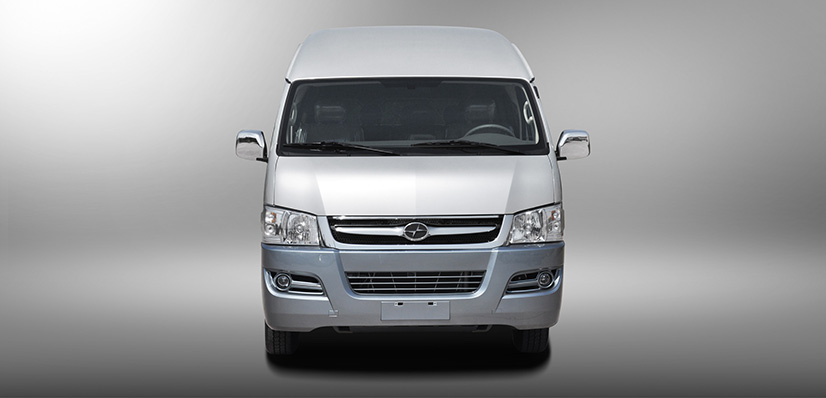

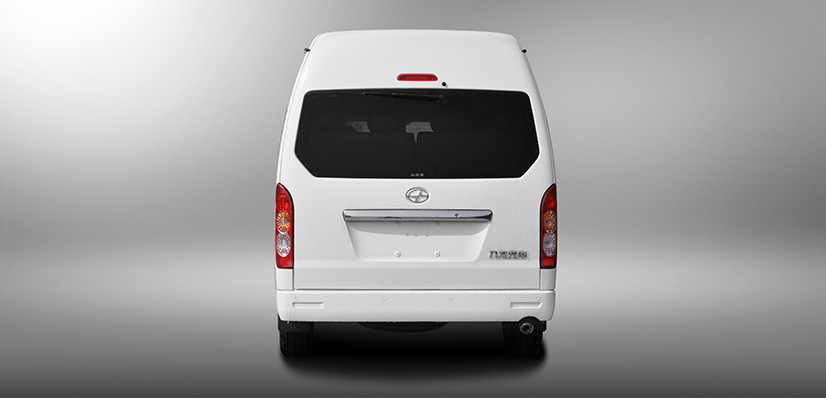

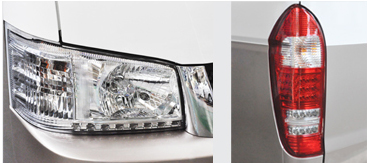

Classic front and rear lights

Optional color

White & light tan
Silver & gray
White
Silver
Gray
Blue

Interior

Elegant beige interior shows noble and comfortable style; Simple central control instrument design makes the operation flexible; Adjustable steering wheel brings you an easy driving. In addition to standard seat, you may choose aero seat/ administrative seat, rear hanging seat, folding seat and other different seat. GPS, color reversing display, anion air purifier, 15 inch LCD monitor and so on, will give you an honorable business travel.

Standard configuration

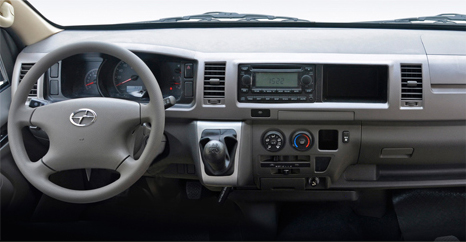

Central control board

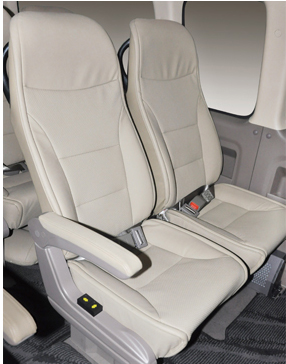

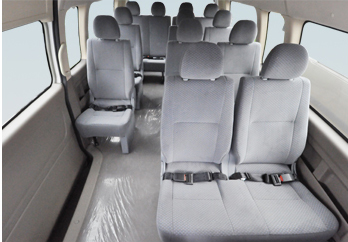

Standard fabric seat

Adjustable steering wheel

Anion air purifier

Independent air conditional system

Optional configuration

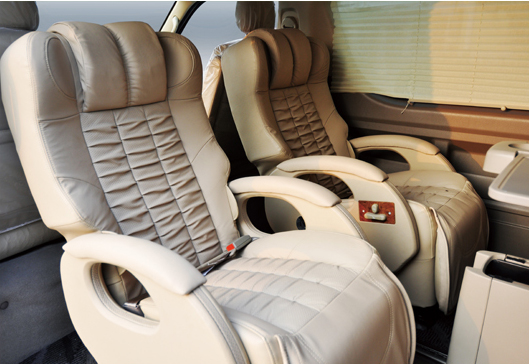

Luxurious seat

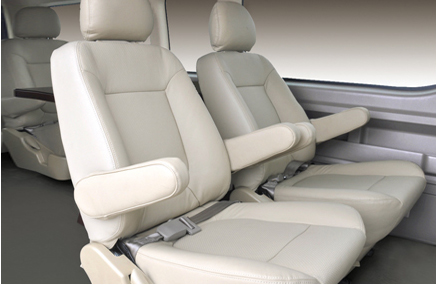

Aero seat

Rear luggage area

Administrative seat

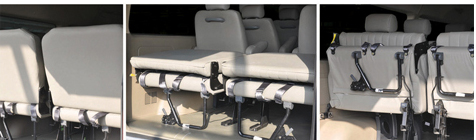

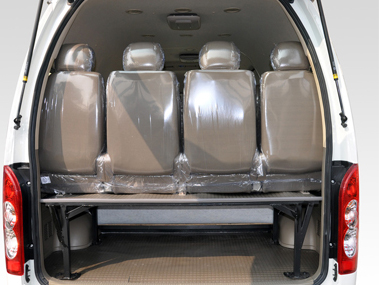

Rear hanging seat, folding seat

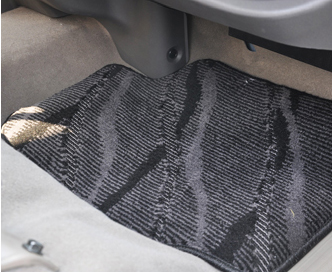

Decorated mat

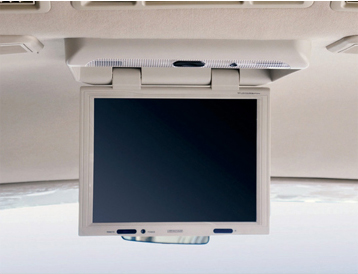

15 inch folding LCD screen

DVD audio and video system

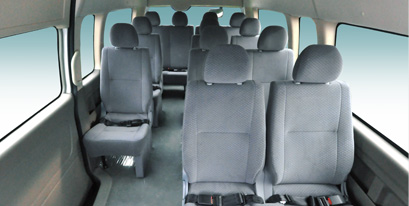

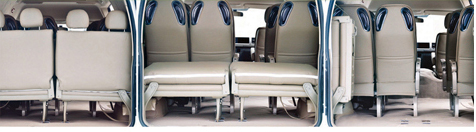

Seating layout

Vehicle configuration


Model	HKL6540E4	HKL6540A		HKL6540CA	HKL6540CE
Basic parameter
Lengthwidthheight (mm)	5380×1880×2285	5380×1880×2285		5380×1880×2285	5380×1880×2285
Wheelbase(mm)	3110	3110		3110	3110
Seating capacity	10-15	10-15		10-15	10-15
Fuel tank capacity (L)	70	70		70	70
Max. speed(km/h)	≥130	≥130		≥130	≥130
Engine model	4RB2	3TZ	4GA1-2	SC25R	SC28R
Emission standard	EURO-IV	EURO-IV	EURO-IV	EURO-IV	EURO-V
Displacement(L)	2.4	2.7	2.0T	2.5	2.8
Rated power(kW/rpm)	102/4600-5000	120/4600-5000	140/5000	100/3800	105/3200
Max. torque(N.M/rpm)	217/2600-3200	260/2600-3600	290/1800-4000	330/1800-2400	350/1600-2400
Fuel type	Gasoline	Gasoline	Gasoline	Diesel	Diesel
Gearbox	Five speed manual transmission
Tire	195R15C Radial tire
Brake system	Front disc rear drum, ABS+EBD, Intelligent brake booster system
Suspension	Front double wishbone independent suspension, rear variable stiffness leaf spring
Muffler	TWC, two-stage muffler			Catalyst , muffler	SCR
Main configuration
Intermittent front wiper, rear wiper	●		●	●	●
Rear electric defroster	●		●	●	●
Up and down adjustable steering wheel	●		●	●	●
Reverse sensor	●		●	●	●
Electric central control door lock	●		●	●	●
Electric rear mirror	●		●	●	●
High mount brake lamp	●		●	●	●
Aluminum Alloy rim	4 Aluminum alloy rims, Spare tire iron rim
Body color strip	●		●	●	●
Anti UV front windshield	●		●	●	●
Dark gray privacy side window glass	●		●	●	●
Luxurious flocking carpet	●		●	●	●
Luxurious decorated mat	Optional		Optional	Optional	Optional
Front seat heater ( including defroster)	●		●	●	●
Rear seat heater	●		●	●	●
Front and rear split type air conditional	●		●	●	●
Spray type air conditional outlet	●		●	●	●
Anion air purifier	●		●	●	●
Central storage box	●		●	●	●
Standard seat	●		●	●	●
Aero seat/Administrative seat	Optional		Optional	Optional	Optional
Rear hanging seat/ folding forward seat	Optional		Optional	Optional	Optional
Luxurious leather seat	—		—	—	—
Administrative desk	Optional		Optional	Optional	Optional
CD Sound system	●		●	●	●
Speaker	●(6)		●(6)	●(6)	●(6)
GPS, DVD, Reverse display	Optional		Optional	Optional	Optional
15 inch manual folding LCD screen	Optional		Optional	Optional	Optional
Inverter power	—		—	—	—
PVC floor leather/Quartz sand floor leather	Optional		Optional	Optional	Optional
Electric sliding door	Optional		Optional	Optional	Optional
Built-in sliding window	Optional		Optional	Optional	Optional
Refrigerated incubator	Optional		Optional	Optional	Optional
Four wheel disc brake	Optional		Optional	Optional	Optional

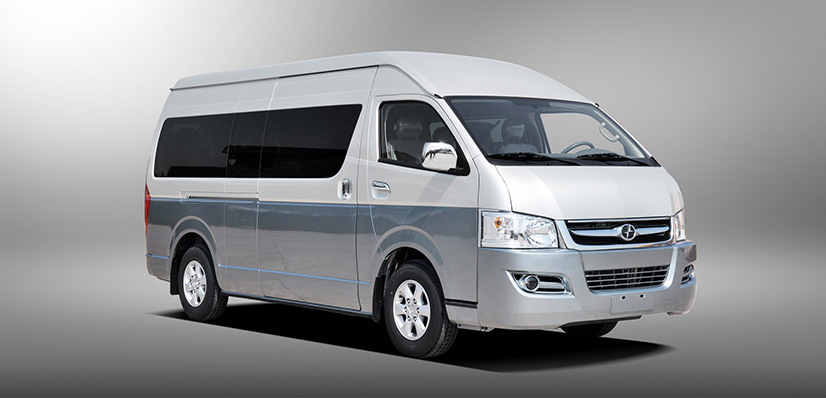

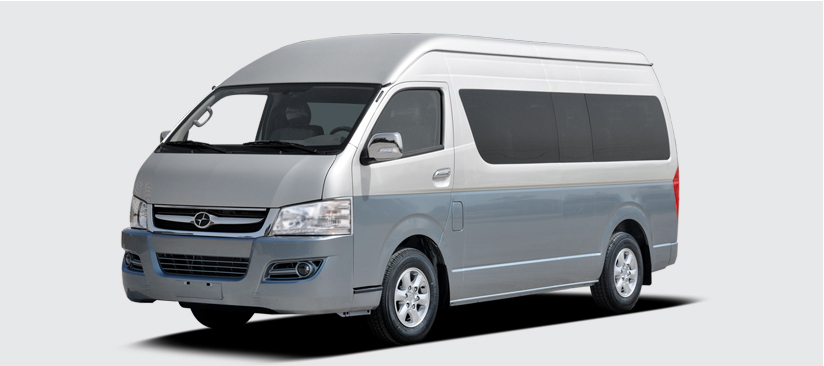

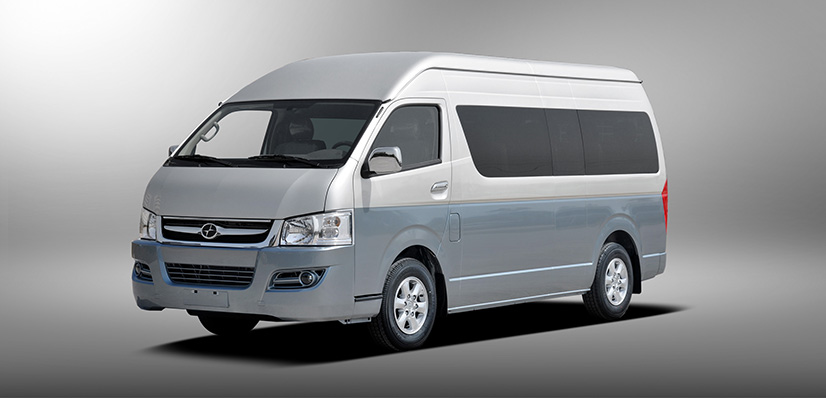

Product display
